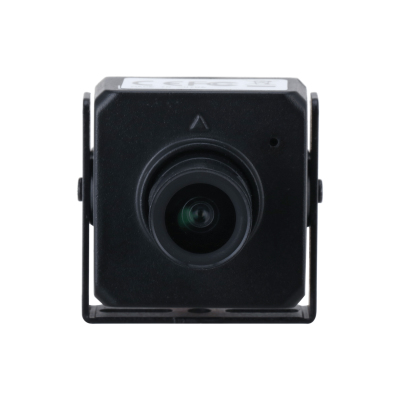

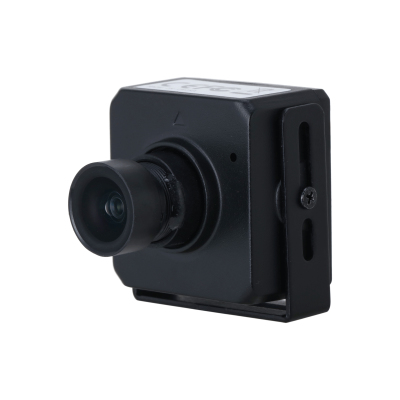

Dahua Technology Pinhole IPC-HUM4231S-L5 security camera Box IP security camera Indoor
Dahua Technology

Pinhole IPC-HUM4231S-L5 security camera Box IP security camera Indoor

1920 x 1080 pixels Ceiling/Desk

Model IPC-HUM4231S-L5

82 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight81 g
  • ColourBlack
  • Form factorBox
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
81 g
Colour
Black
Form factor
Box
Brand
Dahua Technology
Model
IPC-HUM4231S-L5
Part number
IPC-HUM4231S-L5
Also known as
Dahua Technology Pinhole IPC-HUM4231S-L5 security camera Box IP security camera Indoor 1920 x 1080 pixels Ceiling/Desk

Specifications

82 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B

Design

Form factorBox
Mounting typeCeiling/Desk
Product colourBlack

Camera

Minimum illumination0.01 lx
Lens viewing angle, horizontal78°
Lens viewing angle, vertical41°
Lens viewing angle, diagonal94°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic, Mechanical
Camera shutter speed1/3 s–1/100,000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Detect distance63.6 m
Observe distance25.4 m
Recognize distance12.7 m
Focal length range3.6 mm
Identify distance6.4 m
Maximum aperture number1.6
Closest focusing distance1.7 m

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.264B, H.265
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–6144 kbps H.265: 3 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711 A-law, G.711 μ-law, G.726, PCM
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC
Power consumption (typical)1.2 W
Power consumption (max)1.56 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width31 mm
Depth31 mm
Height37.1 mm
Weight81 g

Packaging data

Package weight138 g

Packaging content

Number of cameras1
