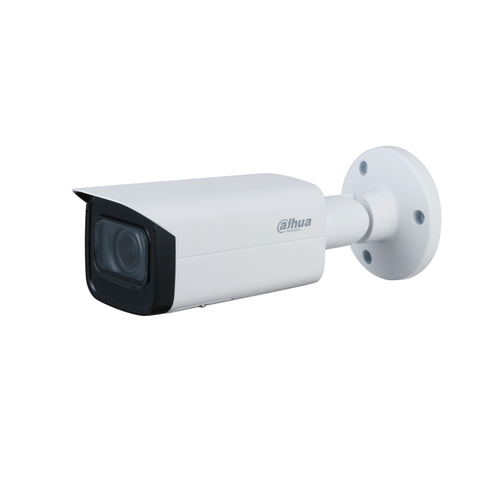

Dahua Technology WizSense IPC-HFW3841TP-ZAS Bullet IP security camera Outdoor
Dahua Technology

WizSense IPC-HFW3841TP-ZAS Bullet IP security camera Outdoor

3840 x 2160 pixels Ceiling

Model IPC-HFW3841TP-ZASPart no. DH-IPC-HFW3841TP-ZAS-27135EAN 6939554993343

77 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight820 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
820 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-HFW3841TP-ZAS
Part numbers
DH-IPC-HFW3841TP-ZAS-27135, DH-IPC-HFW3841TP-ZAS
EAN / UPC
6939554993343
Also known as
Dahua Technology WizSense IPC-HFW3841TP-ZAS Bullet IP security camera Outdoor 3840 x 2160 pixels Ceiling

Specifications

77 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB

Design

Form factorBullet
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
WeatherproofYes

Camera

Minimum illumination0.0007 lx
Angle of rotation360°
Lens viewing angle, horizontal82°
Lens viewing angle, vertical41°
Lens viewing angle, diagonal102°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic, Mechanical
Camera shutter speed1/3 – 1/100000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
Maximum aperture number1.5

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Supported graphics resolutions1920 x 1080 (HD 1080), 3072 x 2048, 704 x 576, 1280 x 720 (HD 720), 3072 x 1728, 704 x 480, 1280 x 960, 2048 x 1536 (QXGA), 3840 x 2160, 352 x 288, 2304 x 1296, 2592 x 1944, 640 x 480 (VGA), 2688 x 1520
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateCBR/VBR
Highlight Compensation (HLC)Yes
Image quality adjustmentDNR, Mirror
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)3 W
Power consumption (max)10.7 W
Power consumption (Power over Ethernet (PoE))3.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width19 mm
Depth244.1 mm
Height75.9 mm
Weight820 g

Packaging data

Package weight1.09 kg

Packaging content

Number of cameras1
