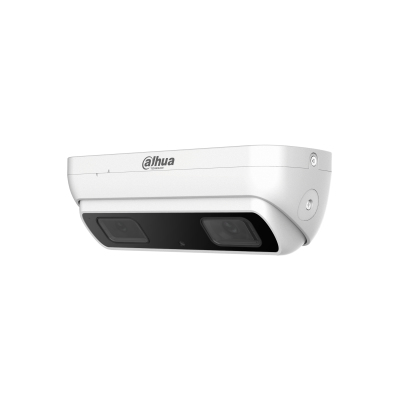

Dahua Technology IPC-HDW8341X-3D security camera Box IP security camera
Dahua Technology

IPC-HDW8341X-3D security camera Box IP security camera

2048 x 1536 pixels Ceiling

Model IPC-HDW8341X-3D

72 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight800 g
  • ColourWhite
  • Form factorBox
  • Minimum illumination0.009 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
800 g
Colour
White
Form factor
Box
Minimum illumination
0.009 lx
Brand
Dahua Technology
Model
IPC-HDW8341X-3D
Part numbers
IPC-HDW8341X-3D, DH-IPC-HDW8341X-3D
Also known as
Dahua Technology IPC-HDW8341X-3D security camera Box IP security camera 2048 x 1536 pixels Ceiling

Specifications

72 specifications in 16 groups

Performance

TypeIP security camera
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE UL FCC

Design

Form factorBox
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.009 lx
Lens viewing angle, horizontal106°
Lens viewing angle, vertical80°
Tilt angle range-10 - 70°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic

Image sensor

Sensor typeCMOS
Number of sensors2
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)2048 x 1536 pixels

Lens system

Zoom capabilityYes
Digital zoom16x
Fixed focusYes
Maximum aperture number1.8
Closest focusing distance0.6 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance10 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution2048 x 1536 pixels
Total megapixels3 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 192~ 10240Kbps H.265: 80~ 6144Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedAAC, G.711, G.726
Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes

Network

Ethernet LANYes
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

ROM capacity4096 MB

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)12 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width204 mm
Depth78 mm
Height62 mm
Weight800 g

Packaging content

Number of cameras1
