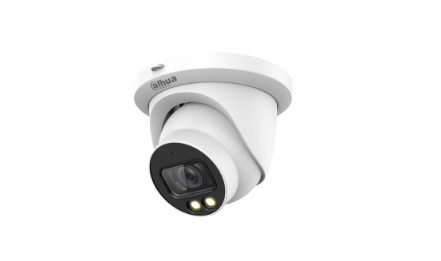

Dahua Technology WizMind IPC-HDW5449TMP-SE-LED-0280B Turret IP security camera Indoor & outdoor
Dahua Technology

WizMind IPC-HDW5449TMP-SE-LED-0280B Turret IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HDW5449TMP-SE-LED-0280BPart no. 5449TMPSELED0280BEAN 6923172524263

82 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
IPC-HDW5449TMP-SE-LED-0280B
Part numbers
5449TMPSELED0280B, DH-IPC-HDW5449TMP-SE-LED-0280B
EAN / UPC
6923172524263
Also known as
Dahua Technology WizMind IPC-HDW5449TMP-SE-LED-0280B Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

82 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range140 dB
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorTurret
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal

Camera

Angle of rotation360°
Lens viewing angle, horizontal107°
Lens viewing angle, vertical60°
Lens viewing angle, diagonal135°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 -1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Detect distance58.2 m
Observe distance23.3 m
Recognize distance11.6 m
Focal length range2.8 mm
Identify distance5.8 m
Maximum aperture number1

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.264B, H.264H, H.265
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes720p, 1080p
Frame rate60 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedG.711 A-law, G.711 μ-law, G.723, G.726, PCM
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Heat map, Intrusion, Missing object, People counting, Tripwire
MirrorYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)2.4 W
Power consumption (max)6.5 W
Power consumption (Power over Ethernet (PoE))3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height104.4 mm
Diameter12.2 cm
Weight500 g

Packaging data

Package weight680 g

Packaging content

Number of cameras1
