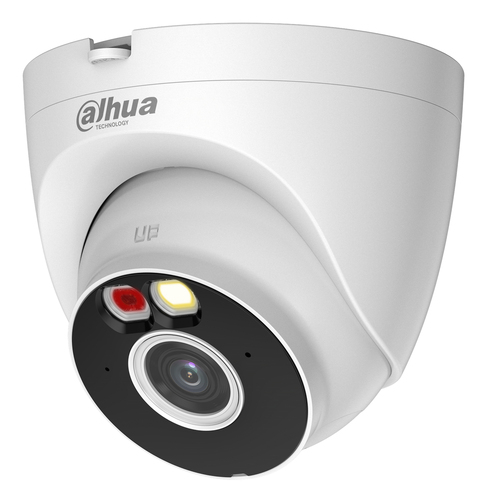

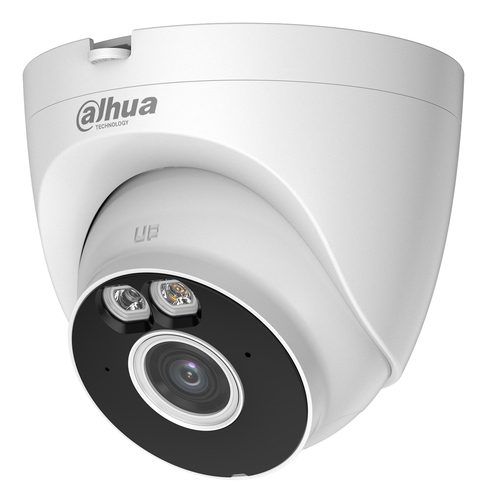

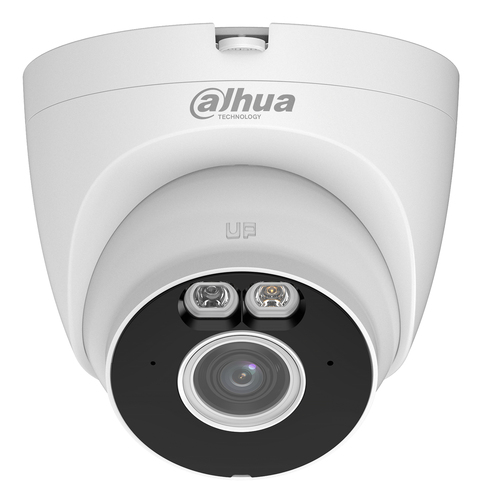

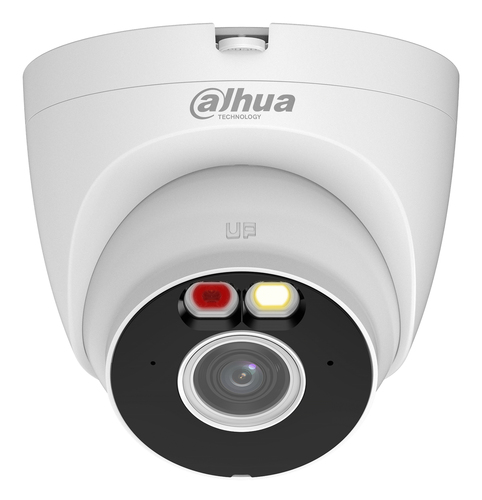

Dahua Technology 5MP Fixed-focal Wi-Fi Turret Network Camera
Dahua Technology

5MP Fixed-focal Wi-Fi Turret Network Camera

Model IPC-HDW1539DA-SW-PVEAN 6939554908699

73 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight320 g
  • ColourWhite
  • Form factorTurret
  • Minimum illumination0.0007 lx
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Weight
320 g
Colour
White
Form factor
Turret
Minimum illumination
0.0007 lx
Brand
Dahua Technology
Model
IPC-HDW1539DA-SW-PV
Part number
IPC-HDW1539DA-SW-PV
EAN / UPC
6939554908699
Also known as
Dahua Technology 5MP Fixed-focal Wi-Fi Turret Network Camera

Specifications

73 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Built-in lightYes

Design

Form factorTurret
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.0007 lx
Lens viewing angle, horizontal108°
Lens viewing angle, vertical57°
Lens viewing angle, diagonal129°
Tilt angle range0 - 78°
Pan range0 - 360°

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")

Lens system

Number of lenses1
Fixed focusYes
Maximum aperture number1.6
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
B/W night vision distance30 m
Colour night vision distance30 m
LED typeIR/White
Number of illumination LEDs2

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Video compression formatsH.265, H.264, H.264H, H.264B, M-JPEG
Supported graphics resolutions2880 x 1620
Supported video modes1620p
Video streamingYes
Bit rate32 kbps–6144 kbps
Digital Wide Dynamic Range (DWDR)Yes

Audio

Built-in speaker(s)Yes
Audio system2-way
Audio codecsG.711a; G.711Mu; PCM
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
BluetoothYes
Ethernet interface typeFast Ethernet
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Cabling technology10/100Base-T(X)
Frequency band2.4000–2.4835

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresVehicle detection, Human detection

Management features

Reset buttonYes
Smartphone/tablet remote supportYes
Management softwareSmart PSS Lite; DSS; DMSS

Power

Power source typeDC
Power consumption (typical)2.1 W
Power consumption (max)7.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportediOS, Android

Weight & dimensions

Height102.2 mm
Diameter11 cm
Weight320 g

Sustainability

Compliance certificatesLow Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE

Packaging content

Number of cameras1
Mounting kitYes
Screws includedYes
AC adapter includedYes
Quick start guideYes
