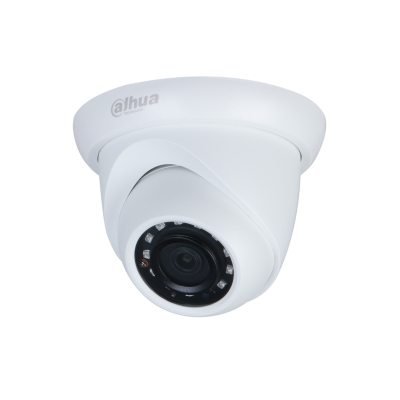

Dahua Technology Entry IPC-HDW1431SN-S4 Dome IP security camera
Dahua Technology

Entry IPC-HDW1431SN-S4 Dome IP security camera

2688 x 1520 pixels Ceiling/Wall/Pole

Model IPC-HDW1431SN-S4Part no. DH-IPC-HDW1431SN-S4

80 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight270 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
270 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDW1431SN-S4
Part number
DH-IPC-HDW1431SN-S4
Also known as
Dahua Technology Entry IPC-HDW1431SN-S4 Dome IP security camera 2688 x 1520 pixels Ceiling/Wall/Pole

Specifications

80 specifications in 19 groups

Performance

TypeIP security camera
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourBlack, White
Housing materialMetal, Plastic
Protection featuresDust resistant
International Protection (IP) codeIP67

Camera

Camera tilt controlYes
Minimum illumination0.03 lx
Angle of rotation360°
Lens viewing angle, horizontal93°
Lens viewing angle, vertical53°
Lens viewing angle, diagonal111°
Tilt angle range0 - 78°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 –1/100000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Fixed focusYes
Maximum aperture number2
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs12

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate30 fps
Analog signal format systemNTSC
Video streamingYes
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Scene change, Tripwire
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)4.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 55 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height84.9 mm
Diameter10.8 cm
Weight270 g

Packaging data

Package weight400 g

Packaging content

Number of cameras1
