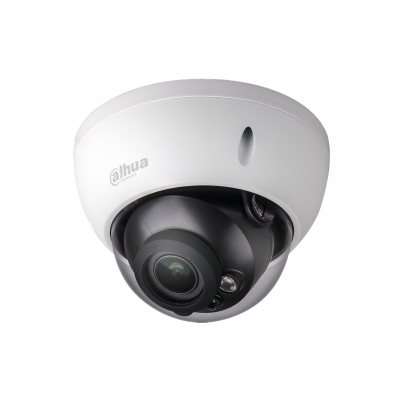

Dahua Technology IPC-HDBW5431R-ZE security camera Dome IP security camera
Dahua Technology

IPC-HDBW5431R-ZE security camera Dome IP security camera

2688 x 1520 pixels Ceiling

Model IPC-HDBW5431R-ZE

82 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.03 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
White
Form factor
Dome
Minimum illumination
0.03 lx
Brand
Dahua Technology
Model
IPC-HDBW5431R-ZE
Part number
IPC-HDBW5431R-ZE
Also known as
Dahua Technology IPC-HDBW5431R-ZE security camera Dome IP security camera 2688 x 1520 pixels Ceiling

Specifications

82 specifications in 18 groups

Performance

TypeIP security camera
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE UL FCC

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
Protection featuresVandal proof
International Protection (IP) codeIP67
IK codeIK10
Fog proofYes

Camera

Minimum illumination0.03 lx
Angle of rotation355°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical58°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3~1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Zoom capabilityYes
Optical zoom5x
Digital zoom16x
Focal length range2.7 - 13.5 mm
FocusMotorized
Maximum aperture number1.4
Closest focusing distance0.3 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 24~10240Kbps H.265: 14~9984Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedAAC, G.711, G.726
Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, Easy4ip

Power

Power source typeDC, PoE
Power consumption (typical)8.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight500 g

Packaging content

Number of cameras1
