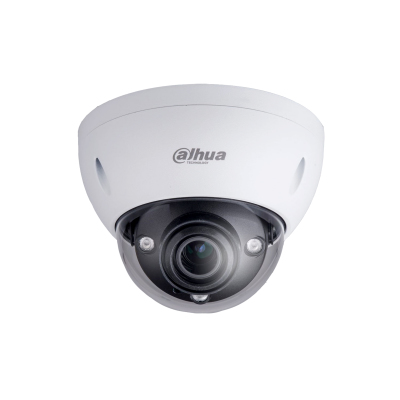

Dahua Technology IPC-HDBW5231E-Z5E security camera Dome IP security camera
Dahua Technology

IPC-HDBW5231E-Z5E security camera Dome IP security camera

1920 x 1080 pixels Ceiling

Model IPC-HDBW5231E-Z5E

79 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight950 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.006 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
950 g
Colour
White
Form factor
Dome
Minimum illumination
0.006 lx
Brand
Dahua Technology
Model
IPC-HDBW5231E-Z5E
Part number
IPC-HDBW5231E-Z5E
Also known as
Dahua Technology IPC-HDBW5231E-Z5E security camera Dome IP security camera 1920 x 1080 pixels Ceiling

Specifications

79 specifications in 17 groups

Performance

TypeIP security camera
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE UL FCC

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.006 lx
Angle of rotation355°
Lens viewing angle, horizontal35°
Lens viewing angle, vertical19°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3~1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom5x
Digital zoom16x
Focal length range7 - 35 mm
FocusMotorized
Maximum aperture number1.4
Closest focusing distance0.6 m

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported video modes720p, 1080p
Frame rate60 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 24~9472Kbps H.265: 14~5632Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedAAC, G.711, G.726
Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

ROM capacity32 MB

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, Easy4ip

Power

Power source typeAC, DC, PoE
Power consumption (typical)15 W

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height117.9 mm
Diameter15.9 cm
Weight950 g

Packaging content

Number of cameras1
