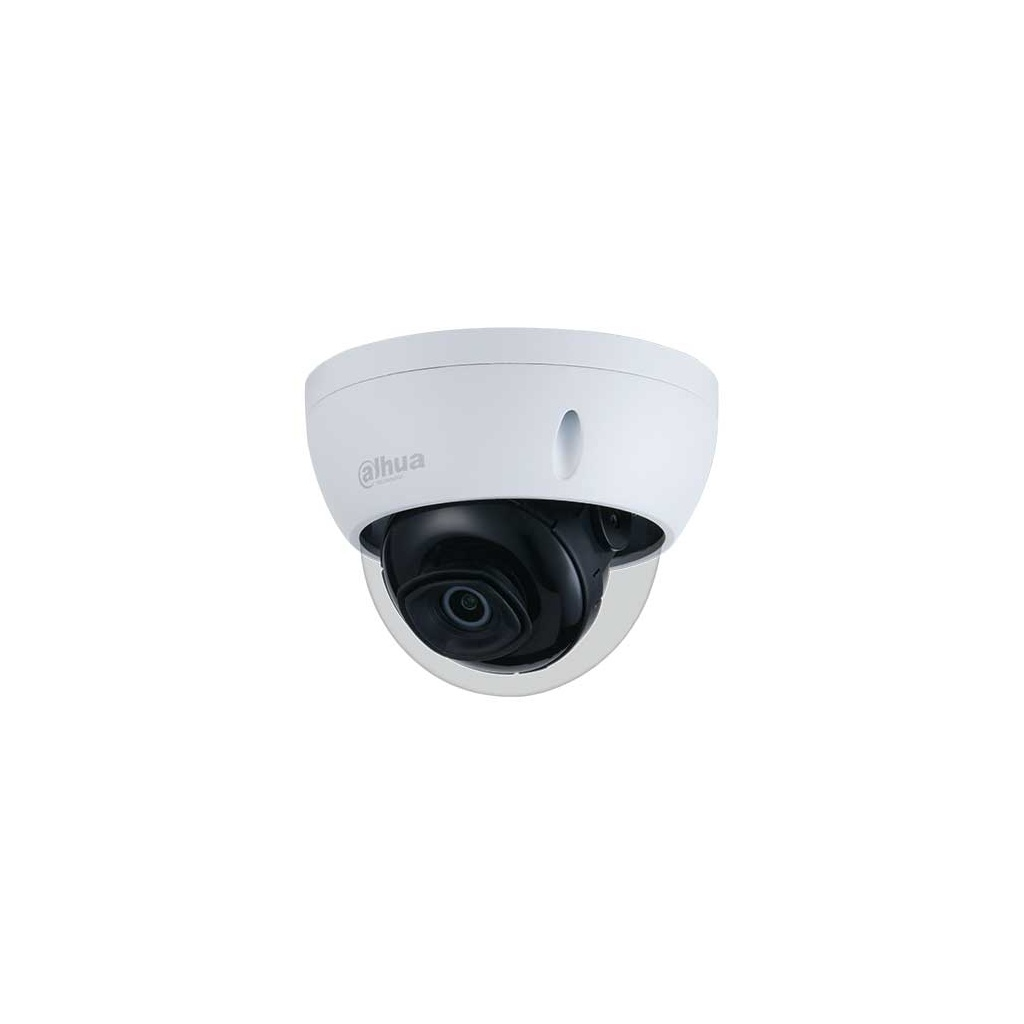

Dahua Technology IPC-HDBW3541EP-AS-0280B Spherical IP security camera Outdoor
Dahua Technology

IPC-HDBW3541EP-AS-0280B Spherical IP security camera Outdoor

2592 x 1944 pixels Ceiling/wall

Model IPC-HDBW3541EP-AS-0280BPart no. DH-IPC-HDBW3541EP-AS-0280BEAN 5706998428202

79 specifications
  • Memory512 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight378 g
  • ColourBlack, White
  • Form factorSpherical
See all specifications

Overview

Memory
512 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
378 g
Colour
Black, White
Form factor
Spherical
Brand
Dahua Technology
Model
IPC-HDBW3541EP-AS-0280B
Part number
DH-IPC-HDBW3541EP-AS-0280B
EAN / UPC
5706998428202, 6939554977732
Also known as
Dahua Technology IPC-HDBW3541EP-AS-0280B Spherical IP security camera Outdoor 2592 x 1944 pixels Ceiling/wall

Specifications

79 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired & Wireless
Wide Dynamic Range (WDR)Yes
Infrared (IR) cut-off filterYes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorSpherical
Mounting typeCeiling/wall
Product colourBlack, White
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Angle of rotation355°
Lens viewing angle, horizontal98°
Lens viewing angle, vertical72°
Lens viewing angle, diagonal130°
Tilt angle range0 - 65°
Pan range0 - 355°
Camera shutter typeElectronic
Camera shutter speed3 s–1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)2592 x 1944 pixels

Lens system

Detect distance56 m
Observe distance22.4 m
Recognize distance11.2 m
Focal length range2.8 - 6 mm
Identify distance5.6 m
Maximum aperture number1.6

Night vision

LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2592 x 1944, 2688 x 1520
Video recordingYes
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedNo
Compatible memory cardsMicroSD (TransFlash)
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1

Power

Power source typeDC, PoE
AC input voltage12 V
Power consumption (typical)7.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Height81 mm
Diameter11 cm
Weight378 g

Packaging data

Package weight523 g

Packaging content

Number of cameras1
ManualYes
