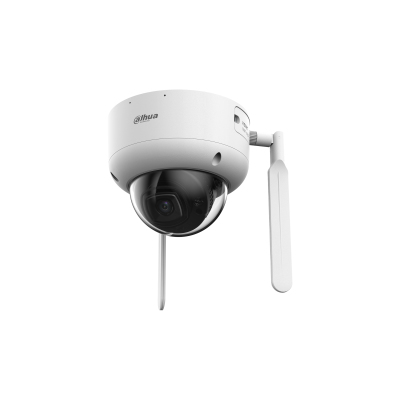

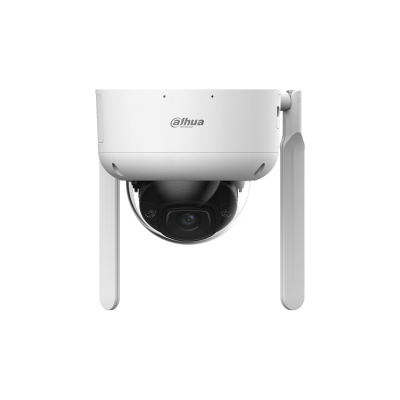

Dahua Technology WizSense IPC-HDBW3441DR1-AST-4G-EAU Dome IP security camera Outdoor
Dahua Technology

WizSense IPC-HDBW3441DR1-AST-4G-EAU Dome IP security camera Outdoor

2688 x 1520 pixels Ceiling

Model IPC-HDBW3441DR1-AST-4G-EAUPart no. DH-IPC-HDBW3441DR1-AST-4G-EAU

80 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight798 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
798 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW3441DR1-AST-4G-EAU
Part number
DH-IPC-HDBW3441DR1-AST-4G-EAU
Also known as
Dahua Technology WizSense IPC-HDBW3441DR1-AST-4G-EAU Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling

Specifications

80 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Angle of rotation355°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264B, H.264H, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440, 2688 x 1520
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.723, G.726, PCM

Network

Ethernet LANYes
Wi-FiYes
BluetoothYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoC
Power consumption (Power over Ethernet (PoE))3.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height105 mm
Diameter12.6 cm
Weight798 g

Packaging data

Package weight990 g

Packaging content

Number of cameras1
