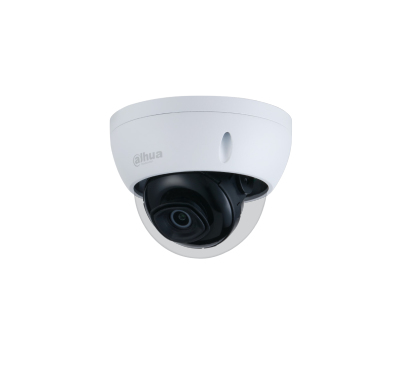

Dahua Technology Lite IPC-HDBW2231E-S-0280B-S2 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HDBW2231E-S-0280B-S2 security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Floor

Model IPC-HDBW2231E-S-0280B-S2EAN 6923172520722

80 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight305 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
305 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW2231E-S-0280B-S2
Part number
IPC-HDBW2231E-S-0280B-S2
EAN / UPC
6923172520722, 6939554979439
Also known as
Dahua Technology Lite IPC-HDBW2231E-S-0280B-S2 security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Floor

Specifications

80 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Form factorDome
Mounting typeFloor
Product colourWhite
Housing materialMetal
Protection featuresVandal proof
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.008 lx
Angle of rotation355°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal126°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Effective sensor resolution (thermal module)2688 x 1520 pixels
Progressive scanYes

Lens system

Focal length range2.8 - 3.6 mm
Maximum aperture number1.6
Closest focusing distance1.6 m

Night vision

Night visionYes
Night vision distance30 m
Number of illumination LEDs3

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsMPEG
Supported graphics resolutions2304 x 1296, 2560 x 1440, 2688 x 1520
Supported video modes1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 3D noise reduction
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Storage

Built-in HDDYes
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Cable managementYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption (typical)5.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width109.9 mm
Depth109.9 mm
Height81 mm
Diameter11 cm
Weight305 g
Width (with stand)491 mm

Packaging content

Number of cameras1
