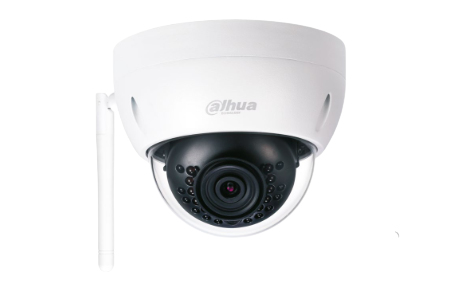

Dahua Technology Lite IPC-HDBW1435EP-W-0280B-S2 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Lite IPC-HDBW1435EP-W-0280B-S2 security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model IPC-HDBW1435EP-W-0280B-S2EAN 8435280912644

82 specifications
  • Memory512 MB
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight304 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired & Wireless
Type
IP security camera
Weight
304 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW1435EP-W-0280B-S2
Part number
IPC-HDBW1435EP-W-0280B-S2
EAN / UPC
8435280912644
Also known as
Dahua Technology Lite IPC-HDBW1435EP-W-0280B-S2 security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

82 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Day/night modeYes
CertificationCE (EN 60950:2000) UL: UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes

Camera

Minimum illumination0.1 lx
Angle of rotation355°
Lens viewing angle, horizontal106°
Lens viewing angle, vertical56°
Lens viewing angle, diagonal127°
Tilt angle range0 - 55°
Pan range0 - 355°
White balanceAuto, Manual, Natural, Outdoor, Street lamp

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom16x
Focal length range2.8 mm
Maximum aperture number2

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs24

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.265
Video compression formatsH.264, H.265
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Supported video modes720p, 1080p
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rateH.265: 12K ~ 8448Kbps H.264: 32K ~ 10240Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory512 MB
ROM capacity32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, Easy4ip

Power

Power source typeDC
Power consumption (typical)6.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height81 mm
Diameter11 cm
Weight304 g

Packaging data

Package weight407 g

Packaging content

Number of cameras1
