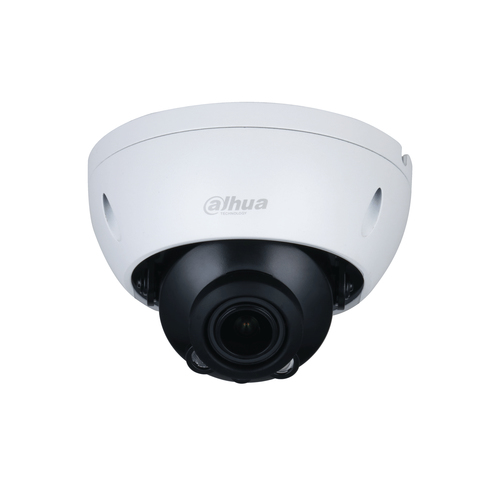

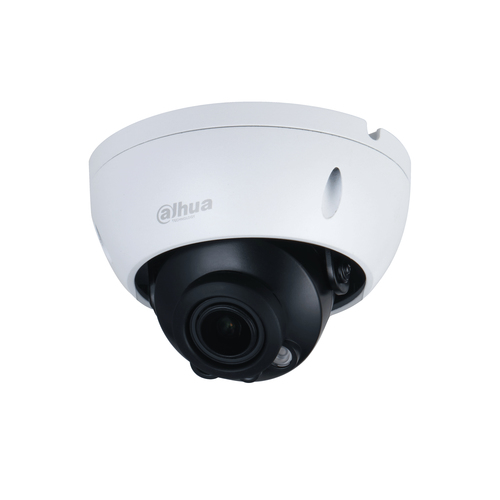

Dahua Technology Entry IPC-HDBW1230E-0280B-S5 security camera Dome IP security camera Outdoor
Dahua Technology

Entry IPC-HDBW1230E-0280B-S5 security camera Dome IP security camera Outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model IPC-HDBW1230E-0280B-S5EAN 6939554944024

79 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight350 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
IP security camera
Weight
350 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-HDBW1230E-0280B-S5
Part number
IPC-HDBW1230E-0280B-S5
EAN / UPC
6939554944024
Also known as
Dahua Technology Entry IPC-HDBW1230E-0280B-S5 security camera Dome IP security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

79 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Angle of rotation355°
Lens viewing angle, horizontal102°
Lens viewing angle, vertical54°
Lens viewing angle, diagonal120°
Tilt angle range0 - 65°
Pan range0 - 355°
White balanceAuto, Custom modes, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Detect distance38.6 m
Observe distance15.4 m
Recognize distance7.7 m
Identify distance3.9 m
Maximum aperture number2
Closest focusing distance0.5 m
Fixed focal length2.8 mm

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes240p, 480p, 576p, 720p, 960p, 1080p
Frame rate30 fps
Analog signal format systemNTSC, PAL
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, SMTP, FTP, DHCP, DNS, NTP, Multicast
Streaming methodMulticast

Storage

Internal memory64 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Active tampering alarmYes
HTTPS encryptionYes
MirrorYes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (max)4.4 W
Power consumption (Power over Ethernet (PoE))5.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height81 mm
Diameter11 cm
Weight350 g

Packaging data

Package weight500 g

Packaging content

Number of cameras1
ManualYes
