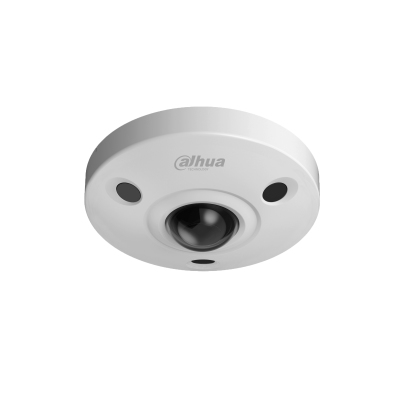

Dahua Technology Panoramic IPC-EBW8630P Dome IP security camera Outdoor
Dahua Technology

Panoramic IPC-EBW8630P Dome IP security camera Outdoor

3072 x 2048 pixels Ceiling

Model IPC-EBW8630PPart no. DH-IPC-EBW8630P

80 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight580 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
580 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-EBW8630P
Part number
DH-IPC-EBW8630P
Also known as
Dahua Technology Panoramic IPC-EBW8630P Dome IP security camera Outdoor 3072 x 2048 pixels Ceiling

Specifications

80 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE (EN 60950:2000), UL:UL60950-1, FCC: FCC 15 B

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10+

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal180°
Lens viewing angle, vertical180°
White balanceAuto, Lamp, Manual, Natural, Outdoor

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom16x
Maximum aperture number2
Fixed focal length1.7 mm

Night vision

Night visionYes
Night vision distance10 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution3072 x 2048 pixels
Total megapixels6 MP
Video formats supportedH.264, H.265
Video compression formatsH.264, H.265
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 960, 1600 x 1200 (UXGA), 2048 x 1536 (QXGA), 3072 x 2048
Analog signal format systemPAL
Video streamingYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265: 3Kbps- 9984Kbps; H.264: 8Kbps - 16384Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHC P;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour ;802.1x;Multicast;ICMP;IGMP;SNMP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Flash memory128 MB
Internal memory1024 MB

Security

Video motion detectionYes

Management features

Web-based managementYes

Power

Power source typeDC, PoE
Power consumption (max)12 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height50.7 mm
Diameter15 cm
Weight580 g

Packaging data

Package weight1 kg

Packaging content

Number of cameras1
