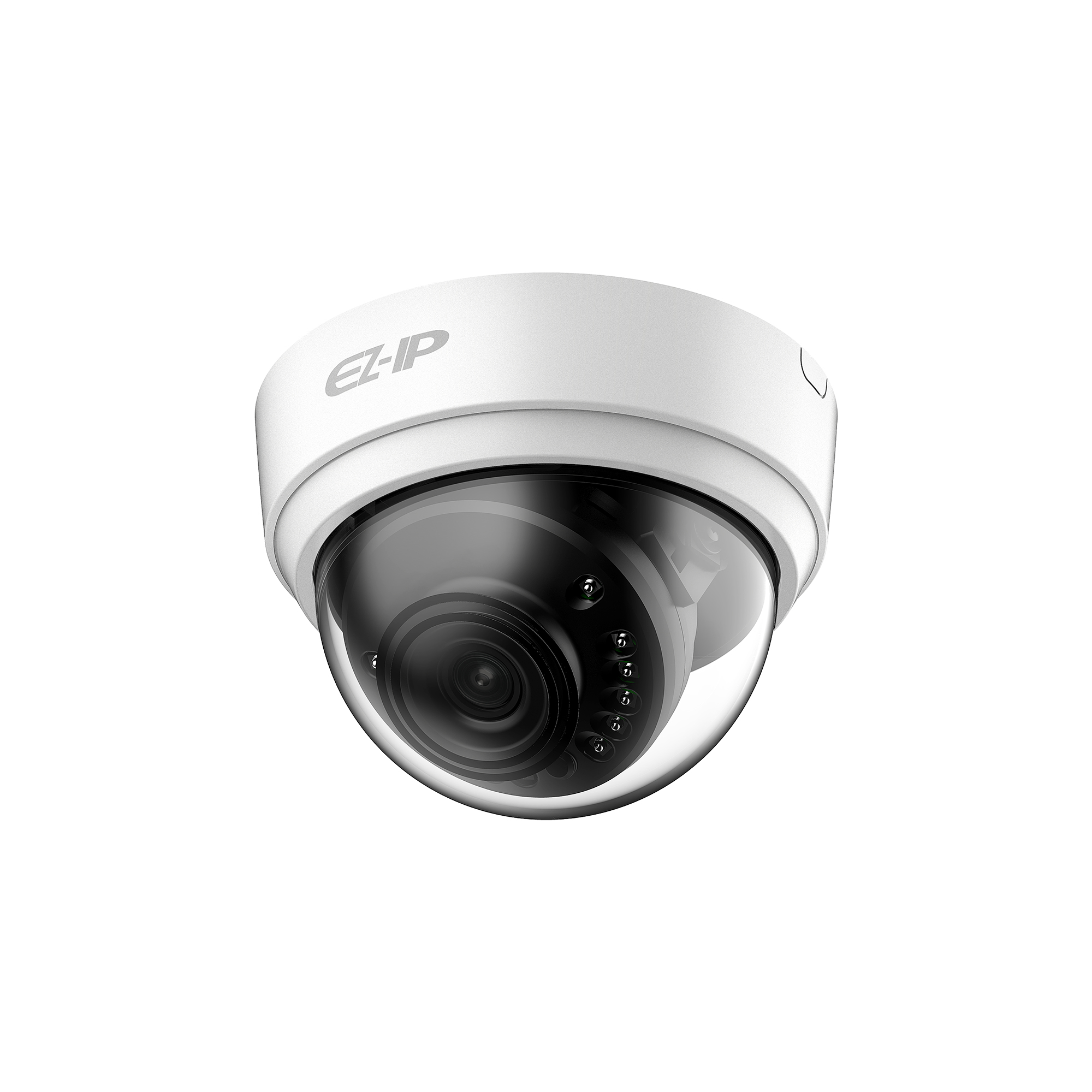

Dahua Technology Ez-Ip IPC-D1B20-L security camera Dome IP security camera Indoor
Dahua Technology

Ez-Ip IPC-D1B20-L security camera Dome IP security camera Indoor

1920 x 1080 pixels Ceiling

Model IPC-D1B20-LEAN 6939554941283

81 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight190 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
IP security camera
Weight
190 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-D1B20-L
Part number
IPC-D1B20-L
EAN / UPC
6939554941283
Also known as
Dahua Technology Ez-Ip IPC-D1B20-L security camera Dome IP security camera Indoor 1920 x 1080 pixels Ceiling

Specifications

81 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Day/night modeYes
CertificationCE: (EN 60950:2000) FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
Housing materialPlastic

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.09 lx
Angle of rotation355°
Lens viewing angle, horizontal115°
Lens viewing angle, vertical60°
Tilt angle range0 - 70°
Pan range0 - 355°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Digital zoom16x
Fixed focusYes
Maximum aperture number2
Closest focusing distance0.6 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR
Number of illumination LEDs12

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate20 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Portrait modeYes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.3af
Supported network protocolsHTTP; HTTPS; TCP; ARP; RTSP; RTP; RTCP; UDP; FTP; DHC P; DNS; IPV4; NTP; Multicast; ICMP; IGMP; TLS
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Internal memory64 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Video motion detectionYes

Management features

Web-based managementYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (max)4 W

Operational conditions

Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height74.3 mm
Diameter10 cm
Weight190 g

Packaging data

Package weight300 g

Packaging content

Number of cameras1
