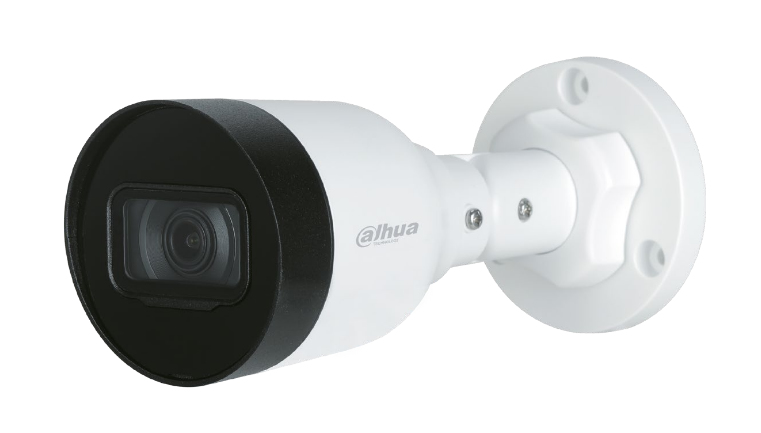

Dahua Technology IPC-CB1C20-0280B security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

IPC-CB1C20-0280B security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model IPC-CB1C20-0280B

77 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight220 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
IP security camera
Weight
220 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-CB1C20-0280B
Part number
IPC-CB1C20-0280B
Also known as
Dahua Technology IPC-CB1C20-0280B security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

77 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
CertificationFCC: FCC Part 15 Subpart B CE (EN 60950:2000)

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal, Plastic
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal115°
Lens viewing angle, vertical60°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Digital zoom16x
Fixed focusYes
Maximum aperture number2
Closest focusing distance0.6 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+, HDV, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes1080p
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; RTCP; UDP; DHCP; DNS; IPV4; NTP; Multicast; ICMP; TLS
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Internal memory64 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Video motion detectionYes

Management features

Web browserYes
Remotely operatedYes

Power

Power source typeDC, PoE
Power consumption (max)4.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width70 mm
Depth162.6 mm
Height70 mm
Weight220 g

Packaging data

Package weight300 g

Packaging content

Number of cameras1
