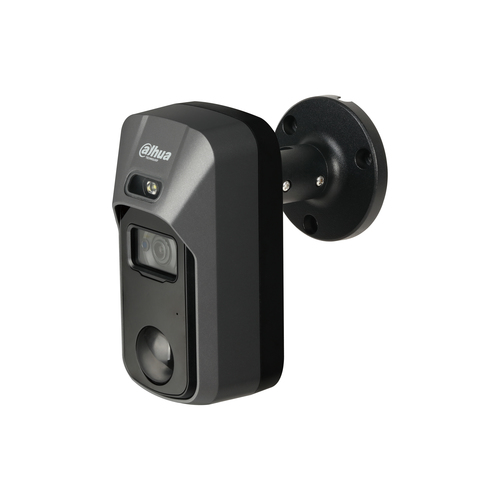

Dahua Technology HAC-ME2241C security camera Cube CCTV security camera Indoor
Dahua Technology

HAC-ME2241C security camera Cube CCTV security camera Indoor

1920 x 1080 pixels Wall/Pole

Model HAC-ME2241C

78 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • ColourBlack
  • Form factorCube
  • Camera pan controlYes
  • Sensor typeCMOS
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Colour
Black
Form factor
Cube
Camera pan control
Yes
Sensor type
CMOS
Brand
Dahua Technology
Model
HAC-ME2241C
Part number
HAC-ME2241C
Also known as
Dahua Technology HAC-ME2241C security camera Cube CCTV security camera Indoor 1920 x 1080 pixels Wall/Pole

Specifications

78 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Plug and PlayYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorCube
Mounting typeWall/Pole
Product colourBlack
Housing materialAluminium, Plastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal110°
Lens viewing angle, vertical60°
Tilt angle range0 - 90°
Pan range0 - 360°
Auto flipYes
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Detect distance39 m
Observe distance15 m
Recognize distance8 m
Maximum aperture number1.6
Closest focusing distance0.5 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR
Number of illumination LEDs1
Infra-red wavelength850 nm

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported video modes1080p
Frame rate60 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology3D noise reduction, Ultra 2D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Audio input channels1.0 channels
Built-in microphoneYes

Network

Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1
DC-in jackYes

Security

Motion sensorYes
Motion sensor technologyPassive infrared (PIR) sensor

Power

Power source typeDC
Power consumption (max)5.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 95%
Storage relative humidity (H-H)10 - 95%

Weight & dimensions

Width144.7 mm
Depth76.7 mm
Height146.4 mm
Diameter41 cm

Packaging data

Package weight550 g

Packaging content

Number of cameras1
