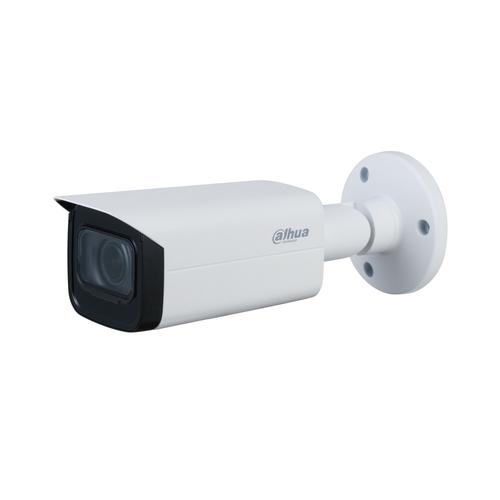

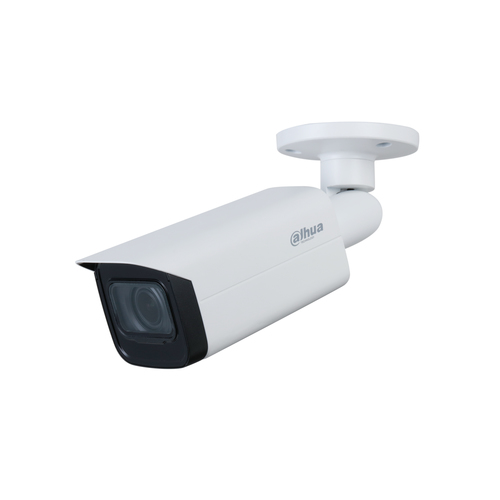

Dahua Technology DH-HAC HAC-HFW2501TU-Z-A-27135-S2 security camera Bullet CCTV security camera Indoor & outdoor
Dahua Technology

DH-HAC HAC-HFW2501TU-Z-A-27135-S2 security camera Bullet CCTV security camera Indoor & outdoor

2880 x 1620 pixels Ceiling/wall

Model HAC-HFW2501TU-Z-A-27135-S2

75 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight760 g
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0.001 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
760 g
Colour
White
Form factor
Bullet
Minimum illumination
0.001 lx
Brand
Dahua Technology
Model
HAC-HFW2501TU-Z-A-27135-S2
Part number
HAC-HFW2501TU-Z-A-27135-S2
Also known as
Dahua Technology DH-HAC HAC-HFW2501TU-Z-A-27135-S2 security camera Bullet CCTV security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/wall

Specifications

75 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN623681:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.001 lx
Angle of rotation360°
Lens viewing angle, horizontal31.4–113
Lens viewing angle, vertical17.6–58
Lens viewing angle, diagonal36–138
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Digital zoom4x
Focal length range2.7 –13.5
Fixed focusYes
Maximum aperture number1.6
Closest focusing distance0.8 m
Detect distance (tele)210 m
Detect distance (wide)64 m
Fixed focal length3.6 mm
Identify distance (tele)21 m
Identify distance (wide)6.4 m
Observe distance (tele)84 m
Observe distance (wide)25.6 m
Recognize distance (tele)42 m
Recognize distance (wide)12.8 m

Night vision

Night visionYes
Night vision distance80 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Supported graphics resolutions960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620
Frame rate25 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)10.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width244.1 mm
Depth90.4 mm
Height90.4 mm
Weight760 g

Packaging data

Package weight1.07 kg

Packaging content

Number of cameras1
