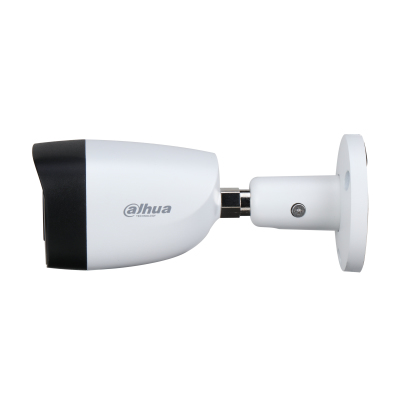

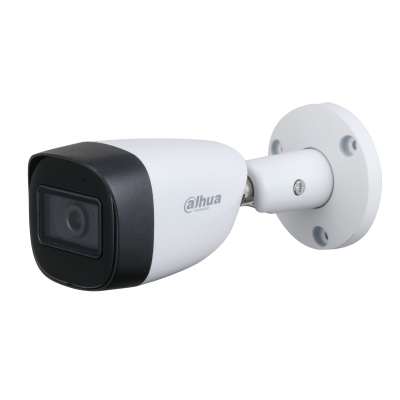

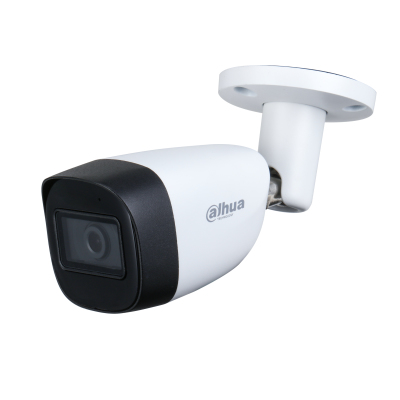

Dahua Technology DH-HAC HAC-HFW2501CM-A security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

DH-HAC HAC-HFW2501CM-A security camera Bullet IP security camera Indoor & outdoor

2880 x 1620 pixels Ceiling/Wall/Pole

Model HAC-HFW2501CM-A

78 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight350 g
  • ColourBlack, White
  • Form factorBullet
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
350 g
Colour
Black, White
Form factor
Bullet
Camera pan control
Yes
Brand
Dahua Technology
Model
HAC-HFW2501CM-A
Part number
HAC-HFW2501CM-A
Also known as
Dahua Technology DH-HAC HAC-HFW2501CM-A security camera Bullet IP security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/Wall/Pole

Specifications

78 specifications in 15 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourBlack, White
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Field of view (FOV) angle109°
Lens viewing angle, horizontal92°
Lens viewing angle, vertical48°
Lens viewing angle, diagonal109°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/4 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance80 m
Observe distance32 m
Recognize distance16 m
Lens diameter3.6 mm
Focal length range3.6 mm
Identify distance8 m
Maximum aperture number1.6
Closest focusing distance1.6 m
Detect distance (tele)63.6 m
Detect distance (wide)80 m
Identify distance (tele)6.4 m
Identify distance (wide)8 m
Observe distance (tele)25.4 m
Observe distance (wide)32 m
Recognize distance (tele)12.7 m
Recognize distance (wide)16 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Supported graphics resolutions960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620
Supported video modes480p, 576p, 1080p, 1440p, 1620p
Frame rate30 fps
NTSC resolutions2880 x 1620 pixels
PAL resolutions2880 x 1620 pixels
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)4.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width69.7 mm
Depth166.6 mm
Height70 mm
Diameter7 cm
Weight350 g

Packaging data

Package weight450 g

Packaging content

Number of cameras1
