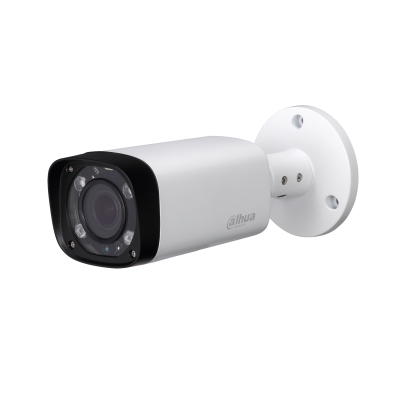

Pro HAC-HFW2231RP-Z-IRE6-0722 security camera Bullet CCTV security camera Indoor & outdoor
1920 x 1080 pixels Wall
Model HAC-HFW2231RP-Z-IRE6-0722
48 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight213 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 213 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW2231RP-Z-IRE6-0722
- Part number
- HAC-HFW2231RP-Z-IRE6-0722
- Also known as
- Dahua Technology Pro HAC-HFW2231RP-Z-IRE6-0722 security camera Bullet CCTV security camera Indoor & outdoor 1920 x 1080 pixels Wall
Specifications
48 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| Housing material | Aluminium |
| Protection features | Dust resistant |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 102° |
| Tilt angle range | 0 - 87° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/4 ~ 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Maximum aperture number | 1.3 |
| Fixed focal length | 13.5 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2.1 MP |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Analog signal format system | NTSC, PAL |
| Noise reduction | Yes |
| Gain control type | Auto |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| DC output voltage | 12 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.4 mm |
| Height | 90.4 mm |
| Weight | 213 g |
| Width (with stand) | 610 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 740 g |
