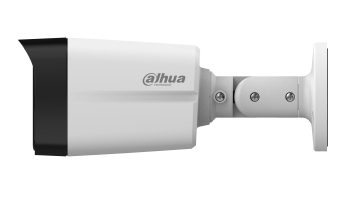

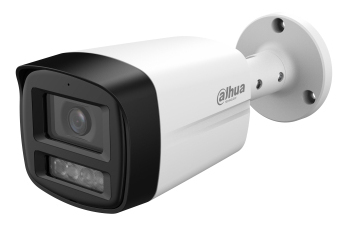

Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology

Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera

Model HAC-HFW1801TLM-IL-APart no. HAC-HFW1801TLM-IL-A-0280B-S3-DIP

74 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight320 g
  • ColourWhite, Black
  • Form factorBullet
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
320 g
Colour
White, Black
Form factor
Bullet
Camera pan control
Yes
Brand
Dahua Technology
Model
HAC-HFW1801TLM-IL-A
Part number
HAC-HFW1801TLM-IL-A-0280B-S3-DIP
Also known as
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera

Specifications

74 specifications in 18 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Maximum operating distance88 m
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Built-in lightYes

Design

Form factorBullet
Mounting typeCeiling/Wall/Pole
Product colourWhite, Black
Housing materialPlastic, Metal
Protection featuresCorrosion resistant, Waterproof
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal105.5°
Lens viewing angle, vertical56.5°
Lens viewing angle, diagonal125.3°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/25 - 1/100000 s

Image sensor

Sensor typeCMOS
Progressive scanYes

Lens system

Detect distance88 m
Observe distance35.2 m
Recognize distance17.6 m
Fixed focusYes
Identify distance8.8 m
Maximum aperture number2
Closest focusing distance1.3 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance40 m
LED typeIR/White
Number of illumination LEDs4

Video

Maximum resolution3840 x 2160 pixels
Supported graphics resolutions960 x 576, 960 x 480, 3840 x 2160
Frame rate15 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Security

Detection distance88 m
MirrorYes

Power

Power source typeDC
Power consumption (max)7.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width80.2 mm
Height76.2 mm
Length198.4 mm
Weight320 g

Sustainability

Compliance certificatesLow Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE

Packaging data

Package weight490 g

Packaging content

Number of cameras1

Technical details

IrisYes
Lens mount interfaceM12
