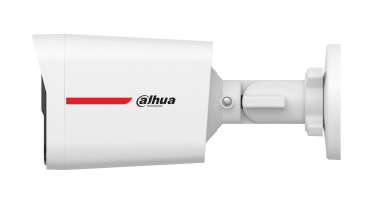

Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera
Dahua Technology

Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera

Model HAC-HFW1549X-IL-A-PROPart no. HAC-HFW1549X-IL-A-PRO-0360B-DIP

77 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight350 g
  • ColourWhite, Black
  • Form factorBox
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
350 g
Colour
White, Black
Form factor
Box
Camera pan control
Yes
Brand
Dahua Technology
Model
HAC-HFW1549X-IL-A-PRO
Part number
HAC-HFW1549X-IL-A-PRO-0360B-DIP
Also known as
Dahua Technology Lite 4K Smart Dual Light HDCVI Fixed-focal Bullet Camera

Specifications

77 specifications in 19 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Maximum operating distance77.8 m
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Built-in lightYes

Design

Form factorBox
Mounting typeCeiling/Wall/Pole
Product colourWhite, Black
Housing materialPlastic, Metal
Protection featuresCorrosion resistant, Waterproof
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal91.1°
Lens viewing angle, vertical48.7°
Lens viewing angle, diagonal107.9°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/25 - 1/100000 s

Image sensor

Sensor typeCMOS
Progressive scanYes

Lens system

Detect distance77.8 m
Observe distance31.1 m
Recognize distance15.6 m
Fixed focusYes
Identify distance7.8 m
Maximum aperture number1
Closest focusing distance2 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance50 m
LED typeIR/White
Number of illumination LEDs4

Video

Maximum resolution2880 x 1620 pixels
Total megapixels5 MP
Supported graphics resolutions960 x 576, 960 x 480, 2560 x 1440, 1920 x 1080 (HD 1080)
Supported video modes1080p
Frame rate25 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

Detection distance77.8 m
MirrorYes

Power

Power source typeDC
Power consumption (max)6.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width75 mm
Height82.2 mm
Length186.5 mm
Weight350 g

Sustainability

Compliance certificatesLow Voltage Directive (LVD), Electromagnetic Compatibility (EMC), CE

Packaging data

Package weight490 g

Packaging content

Number of cameras1

Technical details

IrisYes
Lens mount interfaceM12
