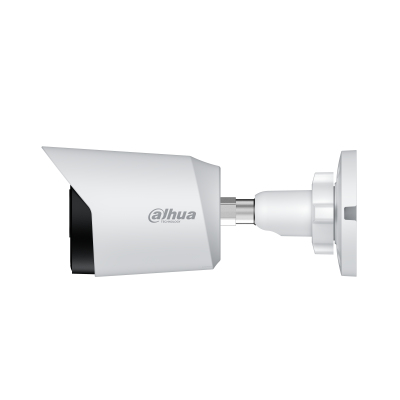

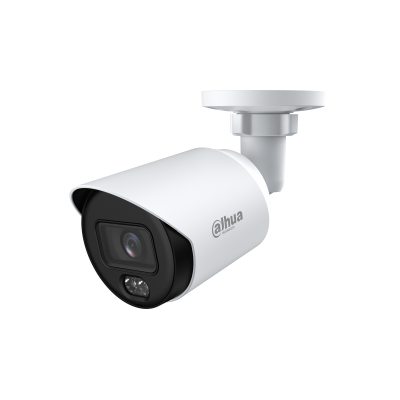

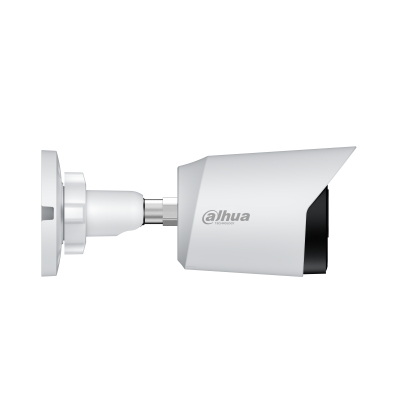

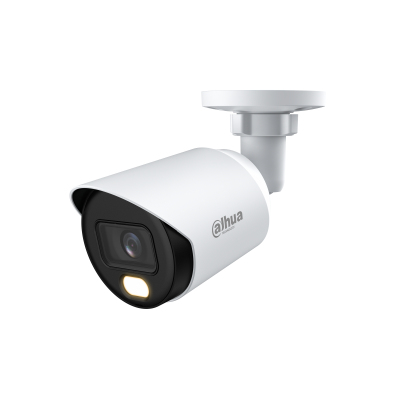

Lite HAC-HFW1509TN-A-LED-0360B-S3 Bullet CCTV security camera Indoor & outdoor
2880 x 1620 pixels Ceiling/Wall/Pole
Model HAC-HFW1509TN-A-LED-0360B-S3Part no. DH-HAC-HFW1509TN-A-LED-0360B-S3
68 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight370 g
- ColourWhite
- Form factorBullet
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 370 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- HAC-HFW1509TN-A-LED-0360B-S3
- Part number
- DH-HAC-HFW1509TN-A-LED-0360B-S3
- Also known as
- Dahua Technology Lite HAC-HFW1509TN-A-LED-0360B-S3 Bullet CCTV security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/Wall/Pole
Specifications
68 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Dynamic range | 120 dB |
| Certification | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 88° |
| Lens viewing angle, vertical | 46° |
| Lens viewing angle, diagonal | 104° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/4 – 1/100000 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 4x |
| Detect distance | 80 m |
| Observe distance | 32 m |
| Recognize distance | 16 m |
| Fixed focus | No |
| Identify distance | 8 m |
| Minimum aperture number | 1 |
| Closest focusing distance | 2.3 m |
| Fixed focal length | 3.6 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | White |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2880 x 1620 pixels |
| Total megapixels | 5 MP |
| Supported graphics resolutions | 960 x 480, 960 x 576, 1920 x 1080 (HD 1080), 2560 x 1440, 2880 x 1620 |
| Frame rate | 30 fps |
| Analog signal format system | NTSC |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Security
| Specification | Value |
|---|---|
| Alarm output channels | 1 |
| Mirror | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.5 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 174.2 mm |
| Depth | 70.6 mm |
| Height | 72.3 mm |
| Weight | 370 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 480 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
