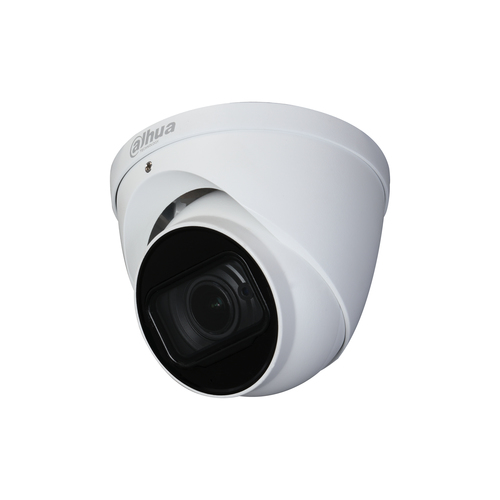

Dahua Technology DH-HAC HAC-HDW2241T-Z-A-27135-S2-DIP security camera Turret CCTV security camera Indoor & outdoor
Dahua Technology

DH-HAC HAC-HDW2241T-Z-A-27135-S2-DIP security camera Turret CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model HAC-HDW2241T-Z-A-27135-S2-DIP

80 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight630 g
  • ColourWhite
  • Form factorTurret
  • Minimum illumination0.004 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
630 g
Colour
White
Form factor
Turret
Minimum illumination
0.004 lx
Brand
Dahua Technology
Model
HAC-HDW2241T-Z-A-27135-S2-DIP
Part number
HAC-HDW2241T-Z-A-27135-S2-DIP
Also known as
Dahua Technology DH-HAC HAC-HDW2241T-Z-A-27135-S2-DIP security camera Turret CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

80 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorTurret
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium
Protection featuresDust resistant, Vandal proof, Water resistant
International Protection (IP) codeIP67

Camera

Minimum illumination0.004 lx
Angle of rotation360°
Lens viewing angle, horizontal108.7°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Number of effective pixels (H x V)1920 x 1080 pixels

Panoramic camera

Detect distance (wide) (panoramic camera)44 m
Identify distance (wide) (panoramic camera)31 m
Observe distance (wide) (panoramic camera)153 m
Recognize distance (wide) (panoramic camera)9 m

Lens system

Number of lenses1
Detect distance44 m
Focal length range2.7 - 13.5 mm
FocusMotorized/Manual
Maximum aperture number1.6
Closest focusing distance0.2 m
Detect distance (tele)153 m
Detect distance (wide)44 m
Identify distance (tele)15 m
Identify distance (wide)4 m
Observe distance (tele)61 m
Observe distance (wide)18 m
Recognize distance (tele)31 m
Recognize distance (wide)9 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Audio input channels1.0 channels
Signal-to-Noise Ratio (SNR)65 dB
Built-in microphoneYes

Network

Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeAC, DC
AC input voltage24 V
Power consumption (max)6.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width122 mm
Depth122 mm
Height107 mm
Diameter12.2 cm
Weight630 g

Packaging data

Package weight830 g

Packaging content

Number of cameras1
