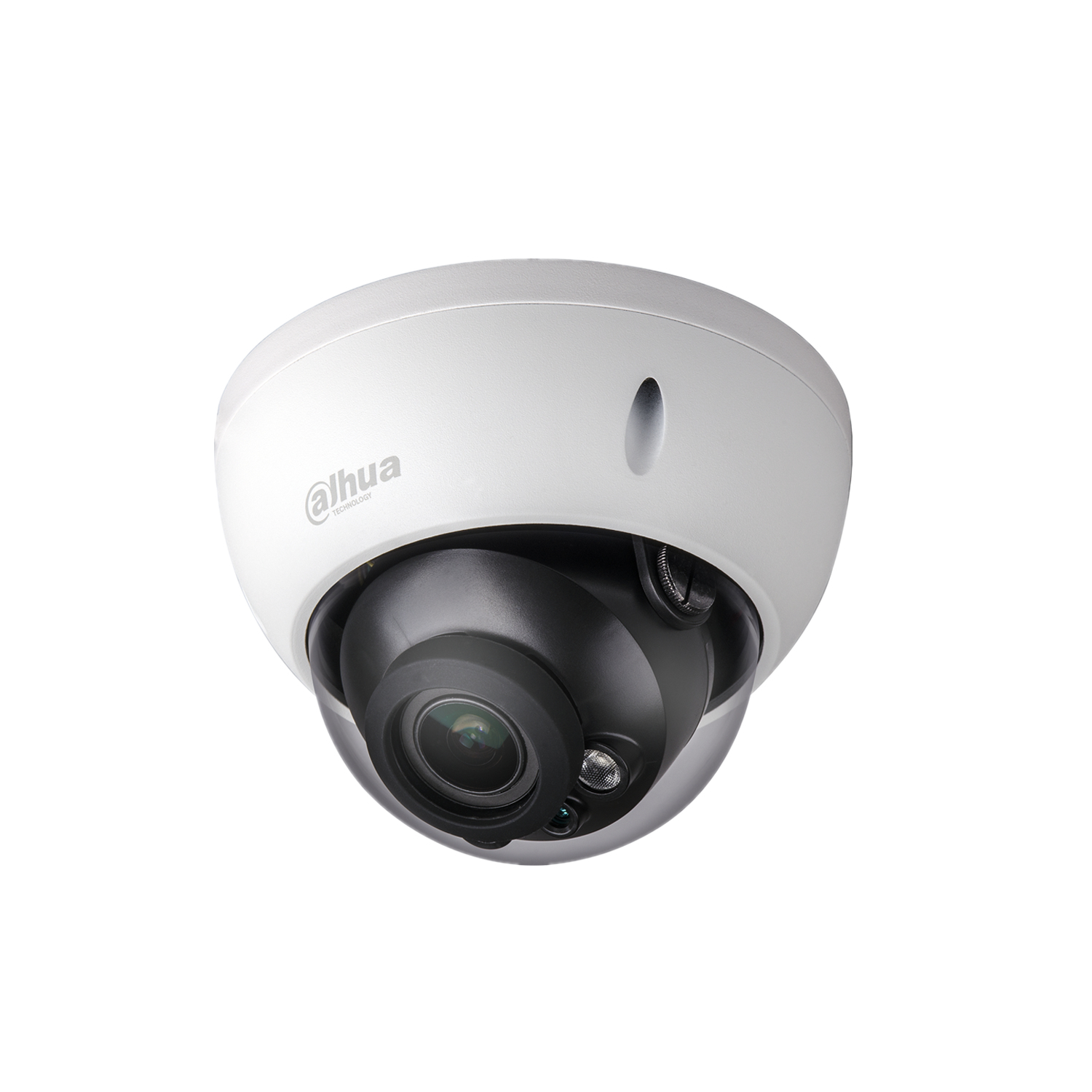

Dahua Technology Pro HAC-HDBW2231R-Z-DP security camera Dome CCTV security camera Outdoor
Dahua Technology

Pro HAC-HDBW2231R-Z-DP security camera Dome CCTV security camera Outdoor

1920 x 1080 pixels Ceiling

Model HAC-HDBW2231R-Z-DPEAN 6939554909191

79 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight480 g
  • ColourBlack, Transparent, White
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
480 g
Colour
Black, Transparent, White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
HAC-HDBW2231R-Z-DP
Part number
HAC-HDBW2231R-Z-DP
EAN / UPC
6939554909191
Also known as
Dahua Technology Pro HAC-HDBW2231R-Z-DP security camera Dome CCTV security camera Outdoor 1920 x 1080 pixels Ceiling

Specifications

79 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeNo
Infrared (IR) cut-off filterYes
Remote viewingYes
Plug and PlayYes

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, Transparent, White
Housing materialAluminium
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation355°
Lens viewing angle, horizontal102°
Tilt angle range0 - 75°
Pan range0 - 355°
Auto flipYes
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1937 x 1097 pixels

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
FocusMotorized/Manual
Maximum aperture number1.3
Closest focusing distance0.2 m
Detect distance (tele)153 m
Detect distance (wide)47 m
Identify distance (tele)15 m
Identify distance (wide)5 m
Observe distance (tele)61 m
Observe distance (wide)19 m
Recognize distance (tele)31 m
Recognize distance (wide)9 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Infra-red wavelength850 nm

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2.1 MP
Supported video modes720p, 1080p
Frame rate30 fps
Analog signal format systemNTSC, PAL
Noise reductionYes
Noise reduction technology3D noise reduction, Ultra 2D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

Composite video out1
BNC output ports1

Management features

Remotely operatedYes

Power

Power source typeAC, DC
AC input voltage24 V
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight480 g

Packaging data

Package weight630 g

Packaging content

Number of cameras1
