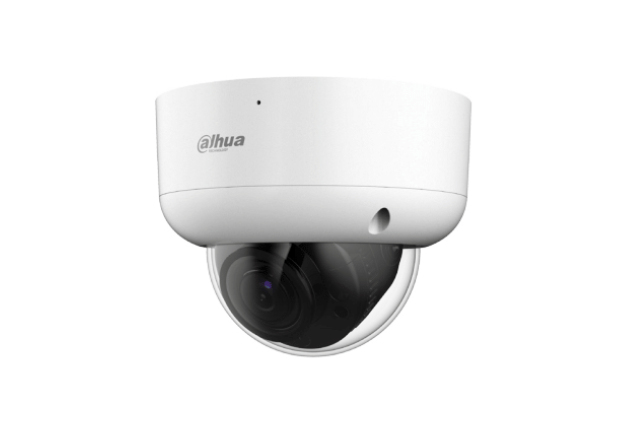

Dahua Technology Lite HAC-HDBW1200RA-Z-S6 security camera Dome CCTV security camera Indoor & outdoor
Dahua Technology

Lite HAC-HDBW1200RA-Z-S6 security camera Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model HAC-HDBW1200RA-Z-S6

74 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight630 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.01 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
630 g
Colour
White
Form factor
Dome
Minimum illumination
0.01 lx
Brand
Dahua Technology
Model
HAC-HDBW1200RA-Z-S6
Part number
HAC-HDBW1200RA-Z-S6
Also known as
Dahua Technology Lite HAC-HDBW1200RA-Z-S6 security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

74 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Parte 15, Subparte B UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.01 lx
Angle of rotation355°
Lens viewing angle, horizontal28.3°–98.2°
Lens viewing angle, vertical15.8°–51.9°
Lens viewing angle, diagonal32.1°–116.7°
Tilt angle range0 - 80°
Pan range0 - 360°
White balanceArea white balance
Camera shutter typeElectronic
Camera shutter speed1/30 s–1/100 000

Image sensor

Sensor typeCMOS
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Focal length range2.7 - 12 mm
Fixed focusYes
FocusMotorized
Maximum aperture number1.6
Closest focusing distance0.8 m
Detect distance (tele)155.6 m
Detect distance (wide)47.4 m
Identify distance (tele)15.6 m
Identify distance (wide)4.7 m
Observe distance (tele)62.2 m
Observe distance (wide)18.9 m
Recognize distance (tele)31.1 m
Recognize distance (wide)9.5 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Frame rate30 fps
Analog signal format systemNTSC
NTSC resolutions1920 x 1080 pixels
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Signal-to-Noise Ratio (SNR)65 dB

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Security

MirrorYes

Power

Power source typeDC
Power consumption (max)4.1 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height100 mm
Diameter12.6 cm
Weight630 g

Packaging data

Package weight810 g

Packaging content

Number of cameras1
