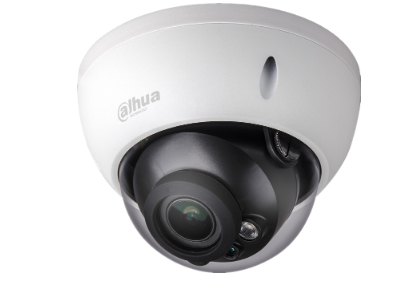

Dahua Technology Lite HAC-HDBW1200R-Z-2712-S5 security camera Dome CCTV security camera Indoor & outdoor
Dahua Technology

Lite HAC-HDBW1200R-Z-2712-S5 security camera Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model HAC-HDBW1200R-Z-2712-S5EAN 6939554989353

66 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight440 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
440 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
HAC-HDBW1200R-Z-2712-S5
Part number
HAC-HDBW1200R-Z-2712-S5
EAN / UPC
6939554989353
Also known as
Dahua Technology Lite HAC-HDBW1200R-Z-2712-S5 security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

66 specifications in 14 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Languages supportMulti
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.02 lx
Angle of rotation355°
Tilt angle range0 - 75°
Pan range0 - 355°
White balanceAuto, Manual
Camera shutter speed1/30 – 1/100000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Detect distance82.8 m
Observe distance33.1 m
Recognize distance16.6 m
Focal length range2.7 - 12 mm
FocusMotorized
Identify distance8.3 m
Maximum aperture number1.8

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Noise reductionYes
Noise reduction technology2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (typical)6.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Height88.9 mm
Diameter12.2 cm
Weight440 g

Packaging data

Package weight590 g

Packaging content

Number of cameras1
