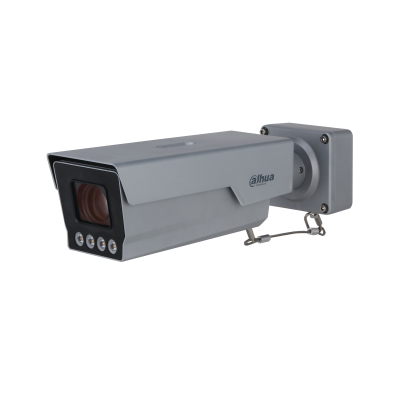

Dahua Technology AI Series DHI-ITC431-RW1F-IRL8 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

AI Series DHI-ITC431-RW1F-IRL8 security camera Bullet IP security camera Indoor & outdoor

2688 x 1520 pixels Wall

Model DHI-ITC431-RW1F-IRL8EAN 6923172518248

71 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight3.9 kg
  • ColourGrey
  • Form factorBullet
  • Minimum illumination0.0001 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
3.9 kg
Colour
Grey
Form factor
Bullet
Minimum illumination
0.0001 lx
Brand
Dahua Technology
Model
DHI-ITC431-RW1F-IRL8
Part number
DHI-ITC431-RW1F-IRL8
EAN / UPC
6923172518248
Also known as
Dahua Technology AI Series DHI-ITC431-RW1F-IRL8 security camera Bullet IP security camera Indoor & outdoor 2688 x 1520 pixels Wall

Specifications

71 specifications in 16 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Dynamic range140 dB

Design

Form factorBullet
Mounting typeWall
Product colourGrey
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes
Fog proofYes

Camera

Minimum illumination0.0001 lx
Lens viewing angle, horizontal9.4 - 40.8°
Lens viewing angle, vertical5.4 - 22.9°
Lens viewing angle, diagonal10.7 - 46.9°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic, Mechanical
Camera shutter speed1/50 s–1/10,000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Focal length range10 - 50 mm
Maximum aperture number1.33

Night vision

Night visionYes
Night vision distance30 m
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264H, H.264M, H.265, M-JPEG
Frame rate25 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–32767 kbps H.265: 32 kbps–32767 kbps MJPEG: 512 kbps–32767 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet

Storage

Built-in HDDNo
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-232 ports2
RS-485 ports2

Security

Alarm input channels3
Alarm output channels2

Power

Power source typeDC, PoE
Power consumption (max)13 W
DC output current36 A

Operational conditions

Operating temperature (T-T)-40 - 65 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width135.8 mm
Height134.1 mm
Length466.4 mm
Weight3.9 kg

Packaging content

Number of cameras1
