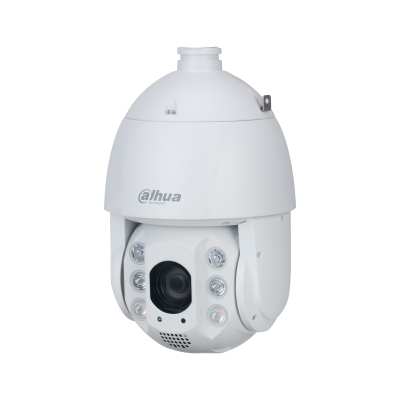

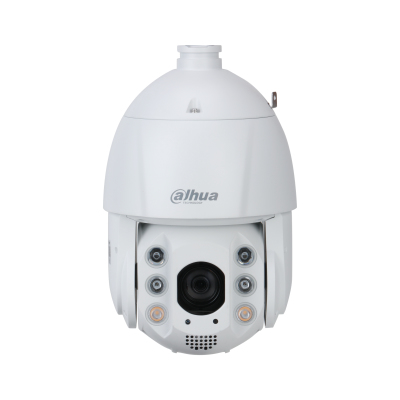

Dahua Technology WizSense DH-SD6C3432XB-HNR-AGQ-PV security camera Turret IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-SD6C3432XB-HNR-AGQ-PV security camera Turret IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling

Model DH-SD6C3432XB-HNR-AGQ-PVEAN 6923169705279

82 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight4.4 kg
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
4.4 kg
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
DH-SD6C3432XB-HNR-AGQ-PV
Part number
DH-SD6C3432XB-HNR-AGQ-PV
EAN / UPC
6923169705279, 8435280912583
Also known as
Dahua Technology WizSense DH-SD6C3432XB-HNR-AGQ-PV security camera Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Specifications

82 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour
Auto-trackingYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP66

Camera

Minimum illumination0.0005 lx
Lens viewing angle, horizontal55.8–2.3
Lens viewing angle, vertical31.9–1.3
Lens viewing angle, diagonal63.7–2.7
Tilt angle range-20 - 90°
Tilt manual speed0.1 - 120 °/sec
Tilt preset speed150 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 160 °/sec
Pan preset speed240 °/sec
White balanceAuto, Indoor, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter speed1/1 s–1/30,000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom32x
Digital zoom16x
Detect distance3080 m
Observe distance1216.6 m
Recognize distance616 m
Focal length range4.8–154
Auto focusYes
FocusMotorized/Manual
Identify distance308 m
Maximum aperture number4
Minimum aperture number1.6
Closest focusing distance0.1 m

Night vision

Night visionYes
Night vision distance150 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA)
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Bit rate1024 kbps–7936 kbps

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711, G.722.1, G.723, G.726, G.729

Network

Ethernet LANYes
BluetoothNo
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP;DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS
Mobile network connectionYes
Mobile network generation4G
4G standardLTE-TDD & LTE-FDD

Storage

Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Security

Alarm input channels2
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresFace detection

Power

Power source typeDC, PoE
Power consumption (typical)4 W
Power consumption (max)27 W
DC output voltage12
DC output current4 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height325 mm
Diameter20.2 cm
Weight4.4 kg

Packaging data

Package weight6.4 kg

Packaging content

Number of cameras1
