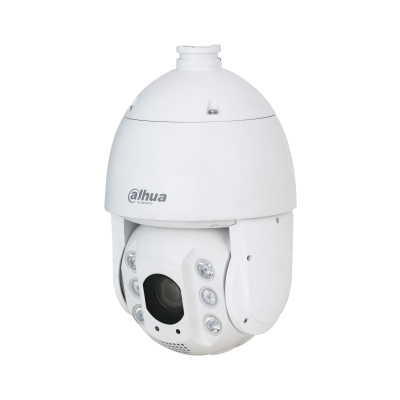

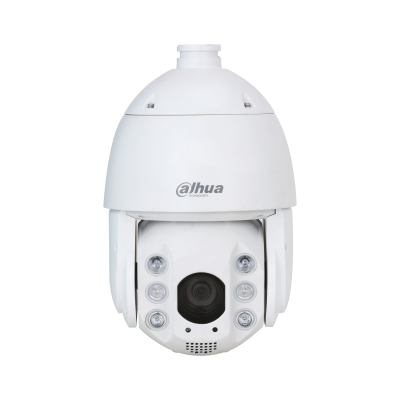

Dahua Technology WizSense DH-SD6C3425XB-HNR-A-PV1 security camera Turret IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-SD6C3425XB-HNR-A-PV1 security camera Turret IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling

Model DH-SD6C3425XB-HNR-A-PV1EAN 6923172524577

85 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight4.6 kg
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
4.6 kg
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
DH-SD6C3425XB-HNR-A-PV1
Part number
DH-SD6C3425XB-HNR-A-PV1
EAN / UPC
6923172524577
Also known as
Dahua Technology WizSense DH-SD6C3425XB-HNR-A-PV1 security camera Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Specifications

85 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern
Day/night modeYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP66

Camera

Minimum illumination0.0005 lx
Lens viewing angle, horizontal55.8–2.9
Lens viewing angle, vertical31.6–1.6
Lens viewing angle, diagonal63.7–3.3
Tilt angle range-20 - 90°
Tilt manual speed0.1 - 60 °/sec
Tilt preset speed150 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 160 °/sec
Pan preset speed240 °/sec
White balanceAuto, Indoor, Manual, Outdoor, Sodium lamp
Camera shutter speed1/1 s–1/30,000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom25x
Digital zoom16x
Detect distance1655 m
Observe distance653 m
Recognize distance331 m
Focal length range4.8–120
Auto focusYes
FocusManual
Identify distance165 m
Maximum aperture number3.5
Minimum aperture number1.6
Closest focusing distance0.8 m

Night vision

Night visionYes
Night vision distance150 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.265, H.265+
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1600 (WQXGA)
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate1024 kbps–7936 kbps
Highlight Compensation (HLC)Yes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711, G.722.1, G.723, G.726, G.729

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresFace detection

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)13 W
Power consumption (max)23 W
DC output voltage24
DC output current2.5 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height325 mm
Diameter20.2 cm
Weight4.6 kg

Packaging data

Package weight9.1 kg

Packaging content

Number of cameras1
