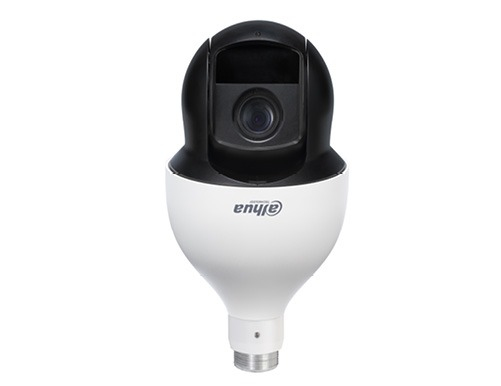

Dahua Technology HDCVI PTZ DH-SD59225N-HC-LA security camera Dome CCTV security camera Indoor & outdoor
Dahua Technology

HDCVI PTZ DH-SD59225N-HC-LA security camera Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model DH-SD59225N-HC-LA

73 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight3.9 kg
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
3.9 kg
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-SD59225N-HC-LA
Part number
DH-SD59225N-HC-LA
Also known as
Dahua Technology HDCVI PTZ DH-SD59225N-HC-LA security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

73 specifications in 15 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Auto scan, Auto pan
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP66

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Tilt angle range-15 - 90°
Tilt speed200 °/sec
Pan range0 - 360°
Pan preset speed400 °/sec
Pan speed300 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3s - 1/100000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom25x
Digital zoom16x
Detect distance1655.2 m
Observe distance656.8 m
Recognize distance331 m
Focal length range4.8 - 120 mm
FocusMotorized/Manual
Identify distance165.5 m
Maximum aperture number3.5

Night vision

Night visionYes
Night vision distance150 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Analog signal format systemPAL
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels

Storage

Built-in HDDNo
ROM capacity16 MB

Ports & interfaces

RS-485 ports1
BNC output ports1

Power

Power source typeAC
AC input voltage24 V
Power consumption (max)22 W

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width186 mm
Depth186 mm
Height310 mm
Weight3.9 kg

Packaging data

Package weight7.2 kg

Packaging content

Number of cameras1
