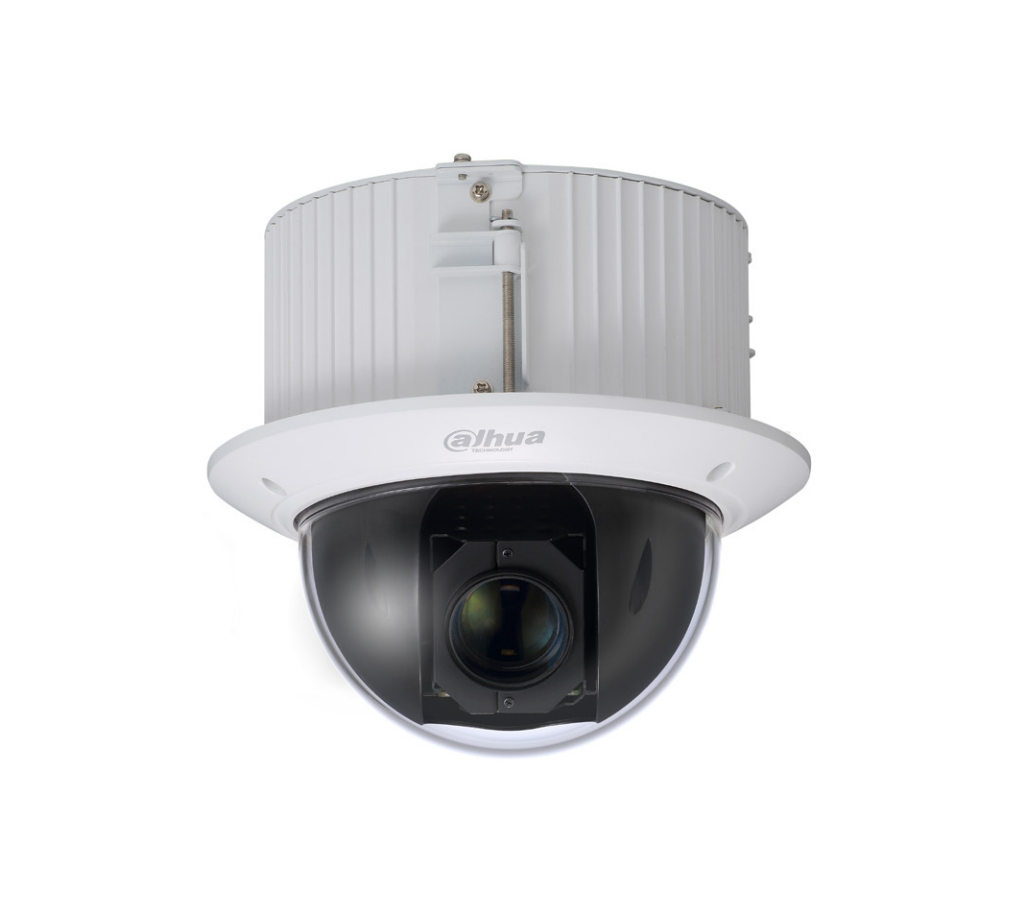

Dahua Technology HDCVI PTZ DH-SD52C232-HC-LA security camera Dome IP security camera Indoor
Dahua Technology

HDCVI PTZ DH-SD52C232-HC-LA security camera Dome IP security camera Indoor

1920 x 1080 pixels Ceiling

Model DH-SD52C232-HC-LAEAN 6939554925290

80 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.2 kg
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
2.2 kg
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DH-SD52C232-HC-LA
Part number
DH-SD52C232-HC-LA
EAN / UPC
6939554925290
Also known as
Dahua Technology HDCVI PTZ DH-SD52C232-HC-LA security camera Dome IP security camera Indoor 1920 x 1080 pixels Ceiling

Specifications

80 specifications in 15 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour, Auto scan, Preset point
PTZ protocolsPelco-P/D, DH-SD
Preset pointsYes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4-2014 UL62368-1+CAN/CSA C22.2,No. 62368-1

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
IK codeIK10
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Angle of rotation360°
Lens viewing angle, horizontal60.14 - 2.75°
Lens viewing angle, vertical34.41 – 1.54
Lens viewing angle, diagonal68.23 – 3.16
Tilt angle range0 - 90°
Tilt manual speed0.1 - 250 °/sec
Tilt speed500 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 350 °/sec
Pan speed500 °/sec
Auto flipYes
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 – 1/100000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom32x
Digital zoom16x
Focal length range4.5 – 144
Auto focusYes
FocusMotorized/Manual
Maximum aperture number4
Closest focusing distance1.5 m
Detect distance (wide)1986 m
Identify distance (wide)198 m
Observe distance (wide)785 m
Recognize distance (wide)398 m

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Internal memory256 MB
ROM capacity16 MB

Ports & interfaces

RS-485 ports1
BNC output ports1

Security

Alarm input channels2
Alarm output channels1

Power

Power source typeDC
Power consumption (typical)9.35 W
Power consumption (max)12.5 W
DC output voltage24

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width176.6 mm
Diameter19.8 cm
Weight2.2 kg

Packaging data

Package weight3.7 kg
