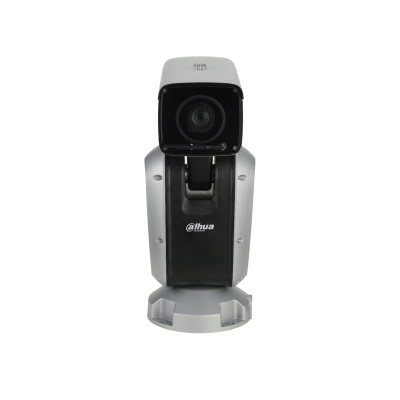

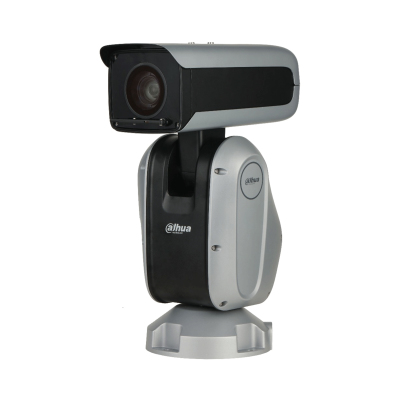

Dahua Technology WizMind DH-PTZ83440N-HNF-PA security camera Box IP security camera Indoor & outdoor
Dahua Technology

WizMind DH-PTZ83440N-HNF-PA security camera Box IP security camera Indoor & outdoor

2560 x 1440 pixels Wall/Pole

Model DH-PTZ83440N-HNF-PA

81 specifications
  • Memory2048 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight14 kg
  • ColourBlack, Grey
  • Form factorBox
See all specifications

Overview

Memory
2048 MB
Connectivity
Wired
Type
IP security camera
Weight
14 kg
Colour
Black, Grey
Form factor
Box
Brand
Dahua Technology
Model
DH-PTZ83440N-HNF-PA
Part number
DH-PTZ83440N-HNF-PA
Also known as
Dahua Technology WizMind DH-PTZ83440N-HNF-PA security camera Box IP security camera Indoor & outdoor 2560 x 1440 pixels Wall/Pole

Specifications

81 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Tour recordingYes
Day/night modeYes
Alarm input/outputYes

Design

Form factorBox
Mounting typeWall/Pole
Product colourBlack, Grey
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0001 lx
Lens viewing angle, horizontal61.8°
Lens viewing angle, vertical36.3°
Lens viewing angle, diagonal69.2°
Tilt angle range-45 - 90°
Tilt preset speed60 °/sec
Pan range0 - 360°
Pan preset speed160 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 x 1/30,000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom40x
Digital zoom16x
Focal length range5.5 - 220 mm
FocusMotorized/Manual
Maximum aperture number1.4
Minimum aperture number4.5
Closest focusing distance0.5 m

Night vision

Night visionYes

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Supported video modes720p, 1080p, 1440p
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate512 - 13056 Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)55 dB
Voice codecsG.711Mu, G.711a, G.722.1, G.726, G.729

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; RTMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Card reader integratedYes
Maximum memory card size256 GB
Internal memory2048 MB
ROM capacity8192 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
BNC output ports1

Security

Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, IVSS

Power

Power source typeDC
Power consumption (typical)19 W
Power consumption (max)60 W
DC output voltage36
DC output current5 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width210.7 mm
Depth366.5 mm
Height498.7 mm
Weight14 kg

Packaging data

Package weight18.5 kg

Packaging content

Number of cameras1
