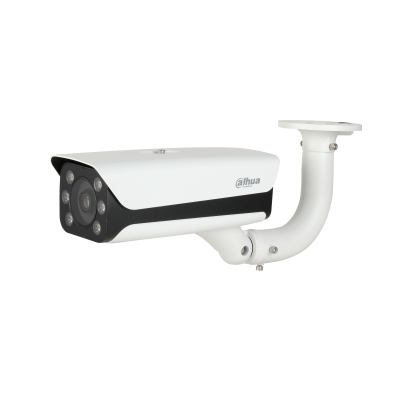

Dahua Technology AI Series DH-IPC-HFW8242E-Z4FR-IRA-LED security camera Bullet IP security camera Indoor & outdoor

Dahua Technology AI Series DH-IPC-HFW8242E-Z4FR-IRA-LED security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model DH-IPC-HFW8242E-Z4FR-IRA-LED

90 specifications
  • Memory2048 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.87 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
2048 MB
Connectivity
Wired
Type
IP security camera
Weight
1.87 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW8242E-Z4FR-IRA-LED
Part number
DH-IPC-HFW8242E-Z4FR-IRA-LED
Also known as
Dahua Technology AI Series DH-IPC-HFW8242E-Z4FR-IRA-LED security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

90 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeYes
CertificationCE, UL:UL60950-1, FCC

Design

Form factorBullet
Mounting typeCeiling
Product colourWhite
Housing materialMetal

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal40°
Lens viewing angle, vertical22°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Zoom capabilityYes
Optical zoom4x
Focal length range8 - 32 mm
FocusMotorized
Maximum aperture number1.53
Closest focusing distance3 m
Detect distance (tele)320 m
Detect distance (wide)106 m
Identify distance (tele)32 m
Identify distance (wide)10 m
Observe distance (tele)128 m
Observe distance (wide)42 m
Recognize distance (tele)64 m
Recognize distance (wide)21 m

Night vision

Night visionYes
Number of illumination LEDs6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.265, M-JPEG
Frame rate60 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate16 - 10240
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeGigabit Ethernet
Supported network protocolsHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Internal memory2048 MB
ROM capacity4096 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
BNC output ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, People counting, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)5 W
Power consumption (max)20 W
Power consumption (Power over Ethernet (PoE))5 W
DC output voltage12
DC output current0.165 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width124.3 mm
Depth457 mm
Height108 mm
Weight1.87 kg

Packaging data

Package weight3.43 kg
