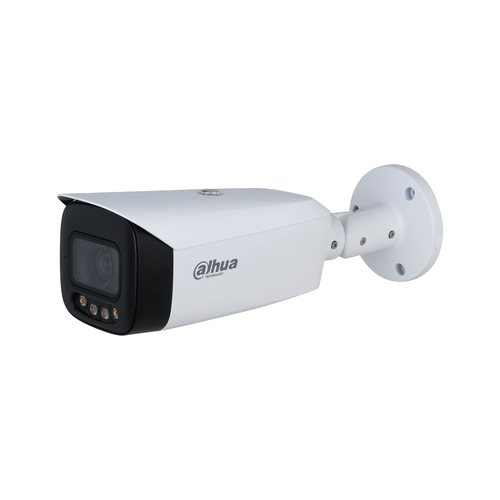

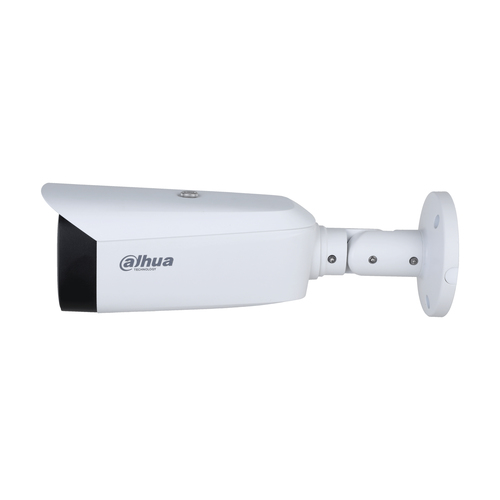

Dahua Technology IPC DH- -HFW5849T1-ASE-LED security camera Bullet IP security camera Outdoor
Dahua Technology

IPC DH- -HFW5849T1-ASE-LED security camera Bullet IP security camera Outdoor

3840 x 2160 pixels Ceiling/wall

Model DH-IPC-HFW5849T1-ASE-LED

77 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.15 kg
  • ColourWhite
  • Form factorBullet
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.15 kg
Colour
White
Form factor
Bullet
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-IPC-HFW5849T1-ASE-LED
Part number
DH-IPC-HFW5849T1-ASE-LED
Also known as
Dahua Technology IPC DH- -HFW5849T1-ASE-LED security camera Bullet IP security camera Outdoor 3840 x 2160 pixels Ceiling/wall

Specifications

77 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
CertificationCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Angle of rotation360°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.2 mm (1 / 1.2")
Progressive scanYes
Number of effective pixels (H x V)3840 x 2160 pixels

Panoramic camera

Number of Privacy masking areas (panoramic camera)8

Lens system

Number of lenses1
Focal length range2.8 mm
Maximum aperture number1
Closest focusing distance3.1 m

Night vision

Night visionYes
Night vision distance60 m
LED typeIR

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video formats supportedH.264, H.264B, H.265
Video compression formatsH.264, H.265
Supported graphics resolutions640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520, 3072 x 1728, 3840 x 2160
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Heat map, Missing object, Tripwire

Management features

Web-based managementYes
Web browserYes
Behavior analysisIntrusion detection

Power

Power source typeDC, PoE
Power consumption (typical)5.3 W
Power consumption (max)11.1 W
Power consumption (Power over Ethernet (PoE))12.1 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width94.4 mm
Depth288.4 mm
Height84.7 mm
Weight1.15 kg

Packaging data

Package weight1.38 kg

Packaging content

Number of cameras1
