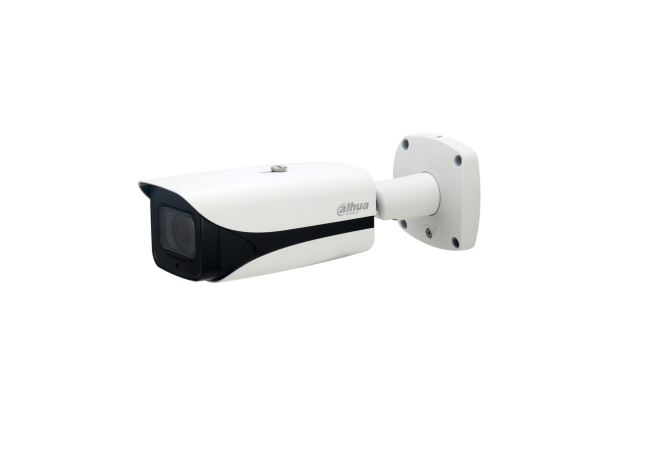

Dahua Technology WizMind DH-IPC-HFW5242E-ZE-MF security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

WizMind DH-IPC-HFW5242E-ZE-MF security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Wall

Model DH-IPC-HFW5242E-ZE-MF

78 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.11 kg
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
1.11 kg
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW5242E-ZE-MF
Part number
DH-IPC-HFW5242E-ZE-MF
Also known as
Dahua Technology WizMind DH-IPC-HFW5242E-ZE-MF security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall

Specifications

78 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes

Design

Form factorBullet
Mounting typeWall
Product colourWhite
LED indicatorsYes
Housing materialMetal, Plastic
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.003 lx
Angle of rotation360°
Lens viewing angle, horizontal114°
Lens viewing angle, vertical62°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 – 1/100000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Focal length range2.7 - 12 mm
FocusMotorized
Maximum aperture number1.8
Closest focusing distance1.2 m
Detect distance (tele)93.4 m
Detect distance (wide)41 m
Recognize distance (wide)8.2 m

Night vision

Night visionYes
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.264+, H.264B, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate60 fps
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlVariable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB
Voice codecsAAC, G.711Mu, G.711a, G.723, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresFace detection
MirrorYes
Motion sensorYes
Security algorithmsHTTPS, SNMP

Management features

Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)10.9 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width273.2 mm
Depth95 mm
Height95 mm
Weight1.11 kg

Packaging data

Package weight1.51 kg

Packaging content

Number of cameras1
