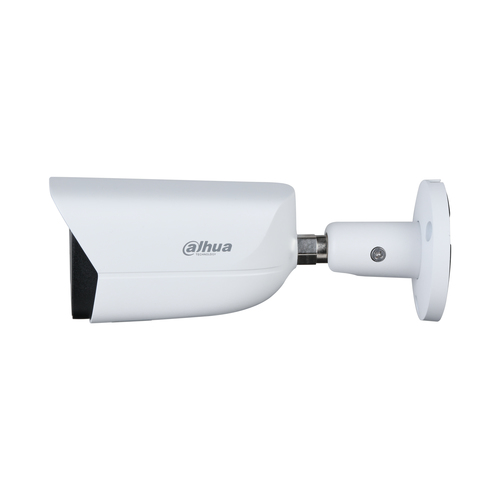

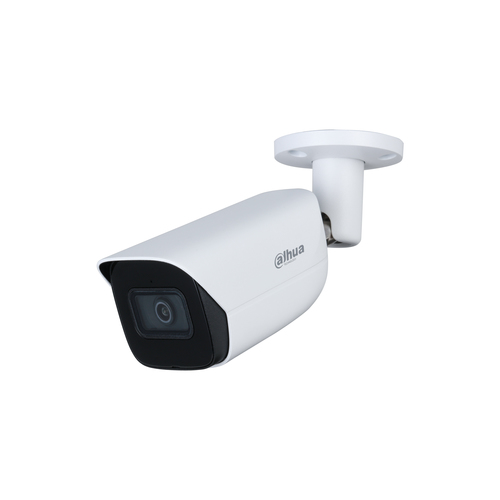

WizSense DH-IPC-HFW3241E-S-S2 security camera Bullet IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/Desk
Model DH-IPC-HFW3241E-S-S2
70 specifications
- ConnectivityWired
- TypeIP security camera
- Weight590 g
- ColourWhite
- Form factorBullet
- Minimum illumination0.0002 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 590 g
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.0002 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-IPC-HFW3241E-S-S2
- Part number
- DH-IPC-HFW3241E-S-S2
- Also known as
- Dahua Technology WizSense DH-IPC-HFW3241E-S-S2 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Desk
Specifications
70 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Desk |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.0002 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 107° |
| Lens viewing angle, vertical | 56° |
| Lens viewing angle, diagonal | 127° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual, Street lamp, Natural |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100.000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 85.5 m |
| Observe distance | 34.2 m |
| Recognize distance | 17.1 m |
| Fixed focus | Yes |
| Identify distance | 8.6 m |
| Maximum aperture number | 1.6 |
| Fixed focal length | 2.8 mm |
| Normal focusing range | 1.3 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in microphone | Yes |
| Bit rate range | 12 - 6144 Kbit/s |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Number of users | 6 user(s) |
| Live view | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Mirror | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 192.7 mm |
| Depth | 70.5 mm |
| Height | 66.4 mm |
| Weight | 590 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 780 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
