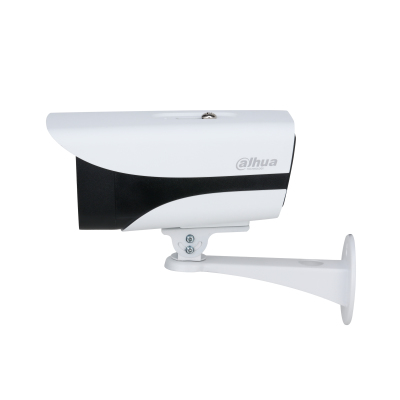

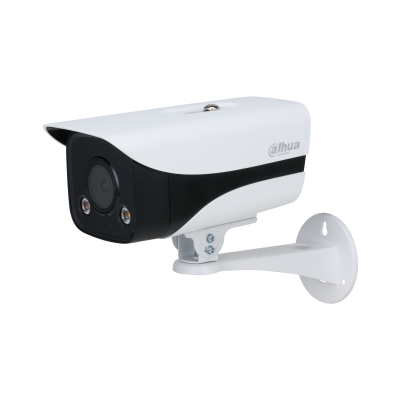

Dahua Technology Lite DH-IPC-HFW2239MN-AS-LED-B-0360B-S2 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Lite DH-IPC-HFW2239MN-AS-LED-B-0360B-S2 security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels Wall

Model DH-IPC-HFW2239MN-AS-LED-B-0360B-S2

90 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight725 g
  • ColourBlack, White
  • Form factorBullet
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
725 g
Colour
Black, White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW2239MN-AS-LED-B-0360B-S2
Part number
DH-IPC-HFW2239MN-AS-LED-B-0360B-S2
Also known as
Dahua Technology Lite DH-IPC-HFW2239MN-AS-LED-B-0360B-S2 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall

Specifications

90 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE-LVD, CE-EMC, FCC

Design

Form factorBullet
Mounting typeWall
Product colourBlack, White
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.0017 lx
Lens viewing angle, horizontal91°
Lens viewing angle, vertical47°
Lens viewing angle, diagonal109°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 – 1/100000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Detect distance49.7 m
Observe distance19.9 m
Recognize distance9.9 m
Identify distance5 m
Maximum aperture number1
Closest focusing distance1.3 m
Fixed focal length3.6 mm

Night vision

Night visionYes
Night vision distance40 m
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)56 dB
Voice codecsG.711Mu, G.711a, G.726

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory128 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels2
Digest authenticationYes
HTTPS encryptionYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC, PoE
Power consumption10 mA
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width96.4 mm
Depth194.1 mm
Height89.5 mm
Weight725 g

Packaging data

Package weight1.22 kg

Packaging content

Number of cameras1
