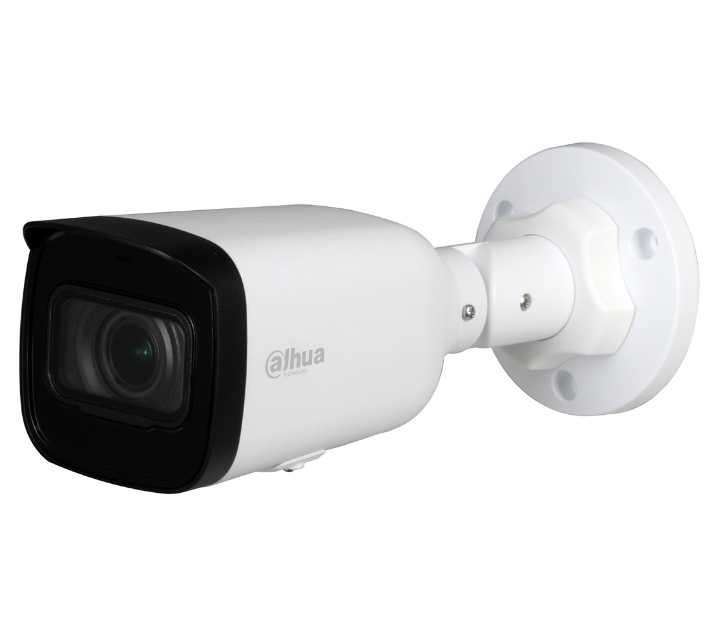

Entry DH-IPC-HFW1230T1N-ZS-S4 security camera Bullet IP security camera Indoor & outdoor
1920 x 1080 pixels Wall
Model DH-IPC-HFW1230T1N-ZS-S4
61 specifications
- ConnectivityWired
- TypeIP security camera
- Weight430 g
- ColourBlack, White
- Form factorBullet
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 430 g
- Colour
- Black, White
- Form factor
- Bullet
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-IPC-HFW1230T1N-ZS-S4
- Part number
- DH-IPC-HFW1230T1N-ZS-S4
- Also known as
- Dahua Technology Entry DH-IPC-HFW1230T1N-ZS-S4 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Wall
Specifications
61 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | Black, White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.008 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Lamp, Manual, Outdoor |
| Camera shutter speed | 1/100000 - 1/3 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.8 - 12 mm |
| Focus | Motorized/Manual |
| Closest focusing distance | 0.8 m |
| Detect distance (tele) | 153.1 m |
| Detect distance (wide) | 44 m |
| Identify distance (tele) | 15.3 m |
| Identify distance (wide) | 4.4 m |
| Observe distance (tele) | 61.2 m |
| Observe distance (wide) | 17.6 m |
| Recognize distance (tele) | 30.6 m |
| Recognize distance (wide) | 8.8 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | H.264, H.264B, H.265 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 6.2 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243.5 mm |
| Diameter | 9.07 cm |
| Weight | 430 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 680 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
