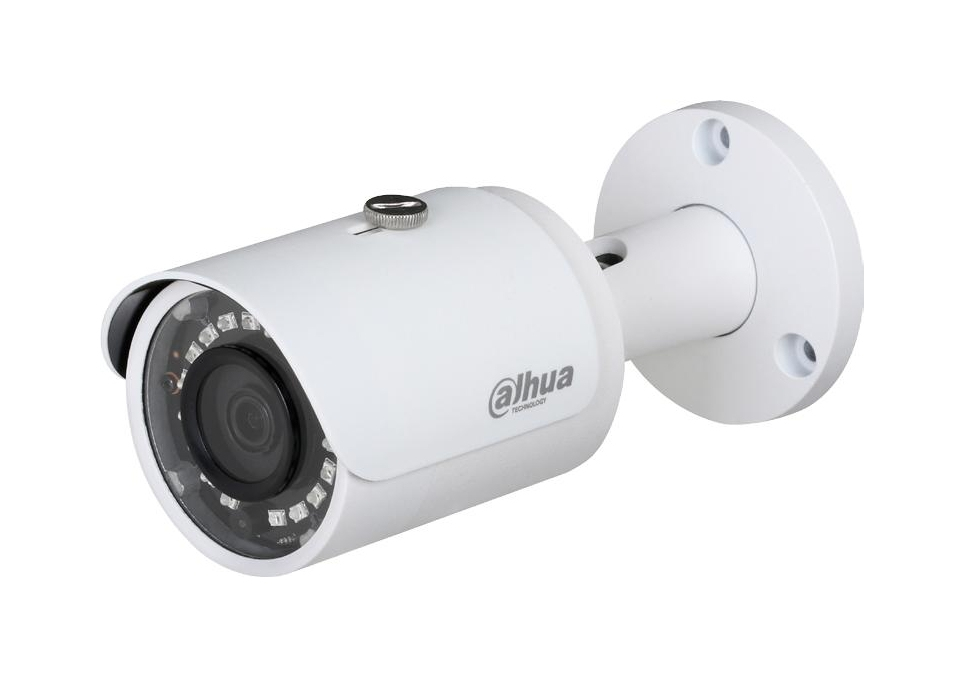

Dahua Technology Lite DH-IPC-HFW1020S Bullet IP security camera Indoor
Dahua Technology

Lite DH-IPC-HFW1020S Bullet IP security camera Indoor

1280 x 720 pixels Wall

Model DH-IPC-HFW1020SPart no. DH-IPC-HFW1020SN-0280B

74 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight380 g
  • ColourWhite
  • Form factorBullet
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
380 g
Colour
White
Form factor
Bullet
Brand
Dahua Technology
Model
DH-IPC-HFW1020S
Part number
DH-IPC-HFW1020SN-0280B
Also known as
Dahua Technology Lite DH-IPC-HFW1020S Bullet IP security camera Indoor 1280 x 720 pixels Wall

Specifications

74 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B

Design

Form factorBullet
Mounting typeWall
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.5 lx
Angle of rotation360°
Lens viewing angle, horizontal85°
Lens viewing angle, vertical44°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Natural, Outdoor
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 4 mm (1 / 4")
Progressive scanYes
Number of effective pixels (H x V)1280 x 720 pixels

Lens system

Number of lenses1
Digital zoom16x
Detect distance43.6 m
Observe distance17.4 m
Recognize distance8.7 m
Fixed focusYes
Identify distance4.4 m
Maximum aperture number2.5
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs18

Video

Maximum resolution1280 x 720 pixels
Total megapixels1 MP
Video formats supportedH.264, H.264+
Video compression formatsH.264, H.264+
Supported video modes720p
Frame rate30 fps
Analog signal format systemNTSC
Video streamingYes
Noise reduction technologyUltra 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Image quality adjustmentDNR
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Number of users10 user(s)
Quality of Service (QoS) supportYes
Streaming methodUnicast

Storage

Internal memory256 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Security algorithms802.1x RADIUS, HTTPS

Management features

Management softwareSmart PSS, DSS,Easy4ip

Power

Power source typeDC, PoE
Power consumption (typical)5.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Diameter7 cm
Length164.7 mm
Weight380 g

Packaging data

Package weight440 g

Packaging content

Number of cameras1
