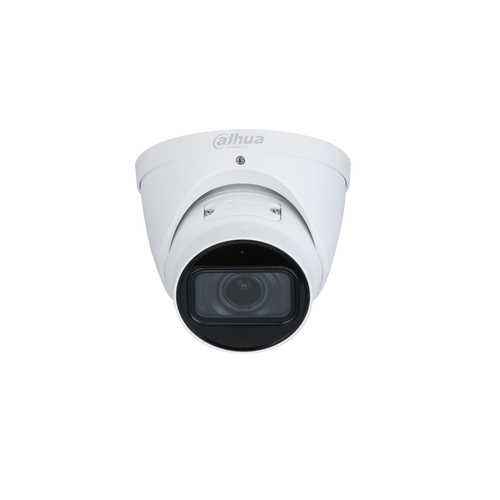

Dahua Technology WizSense DH-IPC-HDW3841TP-ZAS security camera Dome IP security camera Outdoor
Dahua Technology

WizSense DH-IPC-HDW3841TP-ZAS security camera Dome IP security camera Outdoor

3840 x 2160 pixels Ceiling/Wall/Pole

Model DH-IPC-HDW3841TP-ZAS

79 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight685 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.0007 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
685 g
Colour
White
Form factor
Dome
Minimum illumination
0.0007 lx
Brand
Dahua Technology
Model
DH-IPC-HDW3841TP-ZAS
Part number
DH-IPC-HDW3841TP-ZAS
Also known as
Dahua Technology WizSense DH-IPC-HDW3841TP-ZAS security camera Dome IP security camera Outdoor 3840 x 2160 pixels Ceiling/Wall/Pole

Specifications

79 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
CertificationCE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Design

Form factorDome
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.0007 lx
Angle of rotation360°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
Maximum aperture number1.5
Closest focusing distance0.8 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160
Frame rate30 fps
Analog signal format systemPAL
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 kbps–8192 kbps, H.265: 3 kbps–8192 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedG.711 A-law, G.711 μ-law, G.726
Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Audio detectionYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)
Streaming methodMulticast

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Digital watermarkYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)2.6 W
Power consumption (max)6 W
Power consumption (Power over Ethernet (PoE))7.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width122 mm
Depth122 mm
Height108.3 mm
Weight685 g

Packaging data

Package weight828 g

Packaging content

Number of cameras1
