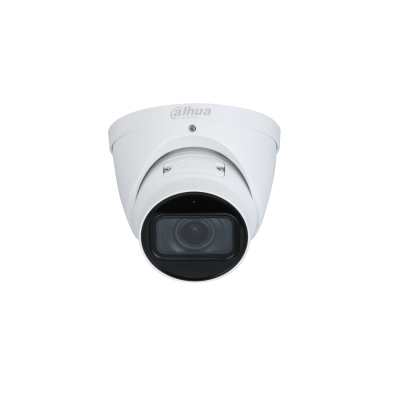

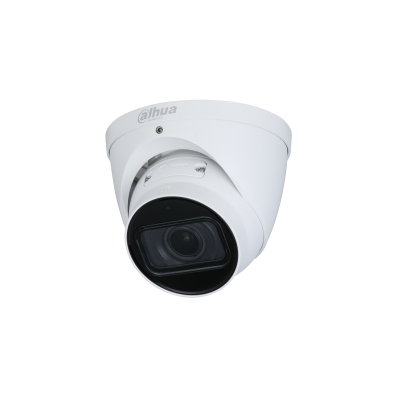

Dahua Technology WizSense DH-IPC-HDW3841TN-ZAS security camera Turret IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-IPC-HDW3841TN-ZAS security camera Turret IP security camera Indoor & outdoor

3840 x 2160 pixels Ceiling

Model DH-IPC-HDW3841TN-ZAS

71 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight685 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
685 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
DH-IPC-HDW3841TN-ZAS
Part number
DH-IPC-HDW3841TN-ZAS
Also known as
Dahua Technology WizSense DH-IPC-HDW3841TN-ZAS security camera Turret IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling

Specifications

71 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Angle of rotation360°
Lens viewing angle, horizontal113°
Lens viewing angle, vertical58°
Lens viewing angle, diagonal138°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Maximum aperture number1.5
Detect distance (tele)280 m
Detect distance (wide)85.3 m
Identify distance (tele)28 m
Identify distance (wide)8.5 m
Observe distance (tele)112 m
Observe distance (wide)34.1 m
Recognize distance (tele)56 m
Recognize distance (wide)17 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2688 x 1520, 3072 x 1728, 3072 x 2048, 3840 x 2160
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes

Audio

Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Management features

Management softwareSmart PSS; DSS; DMSS

Power

Power source typeDC

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Height108.3 mm
Diameter12.2 cm
Weight685 g

Packaging data

Package weight828 g

Packaging content

Number of cameras1
