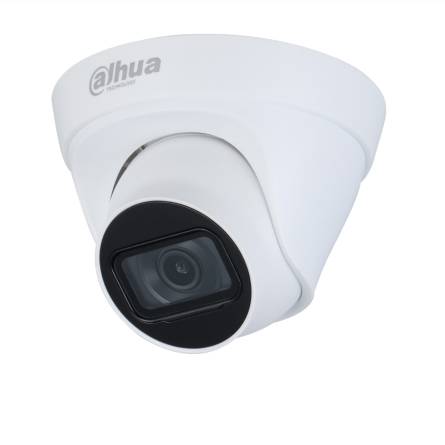

Dahua Technology Entry DH-IPC-HDW1230T1N-0280B-S4 security camera Turret IP security camera Indoor & outdoor
Dahua Technology

Entry DH-IPC-HDW1230T1N-0280B-S4 security camera Turret IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model DH-IPC-HDW1230T1N-0280B-S4

79 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight240 g
  • ColourWhite
  • Form factorTurret
  • Minimum illumination0.01 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
240 g
Colour
White
Form factor
Turret
Minimum illumination
0.01 lx
Brand
Dahua Technology
Model
DH-IPC-HDW1230T1N-0280B-S4
Part number
DH-IPC-HDW1230T1N-0280B-S4
Also known as
Dahua Technology Entry DH-IPC-HDW1230T1N-0280B-S4 security camera Turret IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

79 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Design

Form factorTurret
Mounting typeCeiling/Wall/Pole
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Minimum illumination0.01 lx
Angle of rotation360°
Lens viewing angle, horizontal105°
Lens viewing angle, vertical57°
Lens viewing angle, diagonal125°
Tilt angle range0 - 78°
Pan range0 - 355°
White balanceAuto, Custom modes, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Detect distance37.3 m
Observe distance14.9 m
Recognize distance7.5 m
Identify distance3.7 m
Maximum aperture number2
Closest focusing distance0.5 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Analog signal format systemNTSC
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 32 - 6144 Kbps, H.265: 12 - 6400 Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsIPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Number of users20 user(s)

Storage

Built-in HDDNo
Flash memory64 MB
ROM capacity16 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
Digital watermarkYes
Video motion detectionYes

Power

Power source typeDC, PoE
Power consumption (max)4.3 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height85.5 mm
Diameter10.9 cm
Weight240 g

Packaging data

Package weight370 g

Packaging content

Number of cameras1
