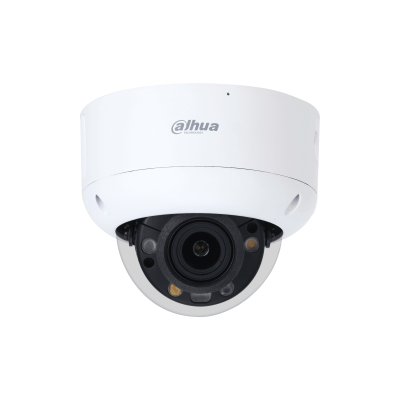

Dahua Technology WizSense DH-IPC-HDBW3449R1-ZAS-PV security camera Dome IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-IPC-HDBW3449R1-ZAS-PV security camera Dome IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling

Model DH-IPC-HDBW3449R1-ZAS-PVEAN 6923172555823

115 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight730 g
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
730 g
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW3449R1-ZAS-PV
Part number
DH-IPC-HDBW3449R1-ZAS-PV
EAN / UPC
6923172555823
Also known as
Dahua Technology WizSense DH-IPC-HDBW3449R1-ZAS-PV security camera Dome IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

115 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
LED indicatorsYes
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes

Camera

Minimum illumination0.0003 lx
Angle of rotation360°
Lens viewing angle, horizontal103°
Lens viewing angle, vertical54°
Lens viewing angle, diagonal124°
Tilt angle range0 - 90°
Pan range0 - 360°
Auto flipYes
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Number of lenses1
Recognize distance37.3 m
Focal length range2.7 - 13.5 mm
Auto focusYes
Fixed focusYes
FocusMotorized/Manual
Identify distance18.7 m
Detect distance (tele)186.6 m
Detect distance (wide)65.2 m
Identify distance (tele)18.7 m
Identify distance (wide)6.5 m
Normal focusing range1.5 m
Observe distance (tele)74.6 m
Observe distance (wide)26.1 m
Recognize distance (tele)37.3 m
Recognize distance (wide)13 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264B, H.265, M-JPEG
Video compression formatsH.264+, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2688 x 1520
Frame rate30 fps
Video streamingYes
Noise reductionYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps - 20480 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Built-in speaker(s)No
Audio system2-way
Audio system full duplexYes
Audio input channels2.0 channels
Audio output channels2.0 channels
Audio formats supportedG.711, G.711 A-law, G.711 μ-law, G.722
Audio codecsG.711a; G.711Mu; PCM; G.726; G.723
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.711u
Audio detectionYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Number of users20 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Security

Alarm input channels1
Alarm output channels1
Automatic Network Replenishment (ANR)Yes
HTTPS encryptionYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Motion sensorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
AC input voltage12 V
Power consumption (typical)3.3 W
Power consumption (max)4.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height105 mm
Diameter12.6 cm
Weight730 g

Packaging data

Package weight900 g

Packaging content

Number of cameras1
