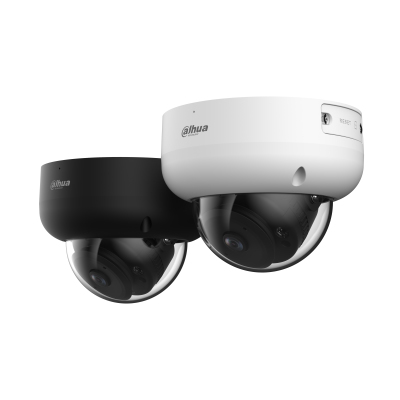

Dahua Technology WizSense DH-IPC-HDBW3441R-AS-P security camera Dome IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-IPC-HDBW3441R-AS-P security camera Dome IP security camera Indoor & outdoor

2880 x 1620 pixels Ceiling/wall

Model DH-IPC-HDBW3441R-AS-PEAN 6923172534286

80 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight500 g
  • ColourAssorted colours
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
500 g
Colour
Assorted colours
Form factor
Dome
Brand
Dahua Technology
Model
DH-IPC-HDBW3441R-AS-P
Part number
DH-IPC-HDBW3441R-AS-P
EAN / UPC
6923172534286
Also known as
Dahua Technology WizSense DH-IPC-HDBW3441R-AS-P security camera Dome IP security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/wall

Specifications

80 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB

Design

Form factorDome
Mounting typeCeiling/wall
Product colourAssorted colours
LED indicatorsYes
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes
Fog proofYes

Camera

Camera tilt controlNo
Minimum illumination0.0005 lx
Angle of rotation355°
Lens viewing angle, horizontal170°
Lens viewing angle, vertical75°
Lens viewing angle, diagonal175°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 s–1/100,000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)2880 x 1620 pixels

Lens system

Number of lenses1
Maximum aperture number2
Closest focusing distance0.6 m
Fixed focal length2.1 mm

Night vision

Night visionYes

Video

Maximum resolution2880 x 1620 pixels
Total megapixels4 MP
Video formats supportedH.264+, H.265+
Video compression formatsH.264, H.264B, H.265, M-JPEG
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Networking standardsIEEE 802.1x
Supported network protocolsIPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Management features

Web-based managementYes
Web browserYes
Behavior analysisIntrusion detection, Line crossing detection

Power

Power source typeDC, PoE
Power consumption (typical)3.2 W
Power consumption (max)6.4 W
Power consumption (Power over Ethernet (PoE))7.7 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height94 mm
Diameter12.2 cm
Weight500 g

Packaging data

Package weight770 g

Packaging content

Number of cameras1
