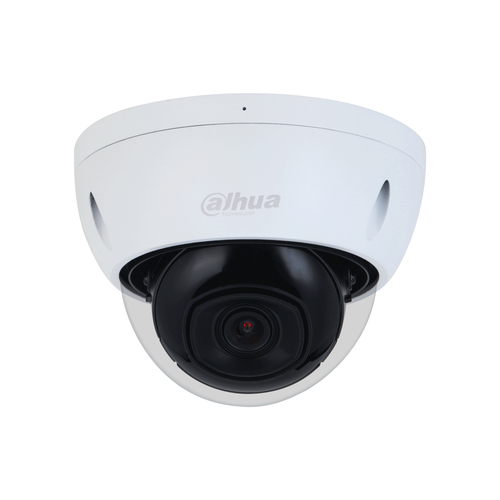

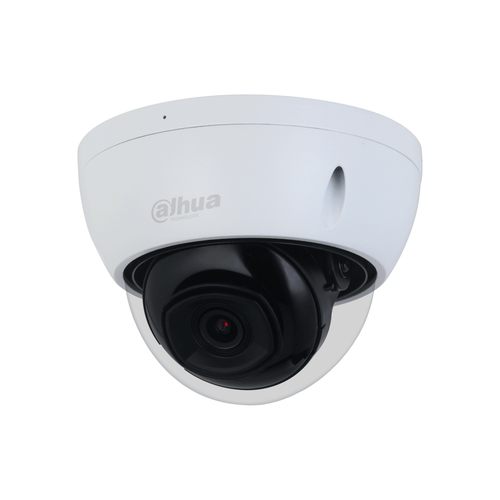

Dahua Technology WizSense DH-IPC-HDBW2541E-S security camera Dome IP security camera Indoor & outdoor
Dahua Technology

WizSense DH-IPC-HDBW2541E-S security camera Dome IP security camera Indoor & outdoor

2592 x 1944 pixels Ceiling/Desk

Model DH-IPC-HDBW2541E-S

81 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight480 g
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.0005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
480 g
Colour
White
Form factor
Dome
Minimum illumination
0.0005 lx
Brand
Dahua Technology
Model
DH-IPC-HDBW2541E-S
Part number
DH-IPC-HDBW2541E-S
Also known as
Dahua Technology WizSense DH-IPC-HDBW2541E-S security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling/Desk

Specifications

81 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB

Design

Form factorDome
Mounting typeCeiling/Desk
Product colourWhite
International Protection (IP) codeIP67
IK codeIK10
WeatherproofYes

Camera

Minimum illumination0.0005 lx
Angle of rotation360°
Lens viewing angle, horizontal97°
Lens viewing angle, vertical71°
Lens viewing angle, diagonal129°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual, Street lamp, Natural
Camera shutter typeElectronic
Camera shutter speed1/3 –1/100.000
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Panoramic camera

Digital Wide Dynamic Range (DWDR) (panoramic camera)Yes

Lens system

Number of lenses1
Detect distance85.4 m
Observe distance34.2 m
Recognize distance17.1 m
Fixed focusYes
Identify distance8.5 m
Maximum aperture number1.6
Fixed focal length2.8 mm
Normal focusing range1.3 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs3

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Built-in microphoneYes
Bit rate range12 - 6144 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Number of users20 user(s)
Live viewYes

Storage

Built-in HDDNo

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes
Motion sensorYes
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)3 W
Power consumption (Power over Ethernet (PoE))3.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width166.2 mm
Depth70 mm
Height70 mm
Weight480 g

Packaging data

Package weight590 g

Packaging content

Number of cameras1
