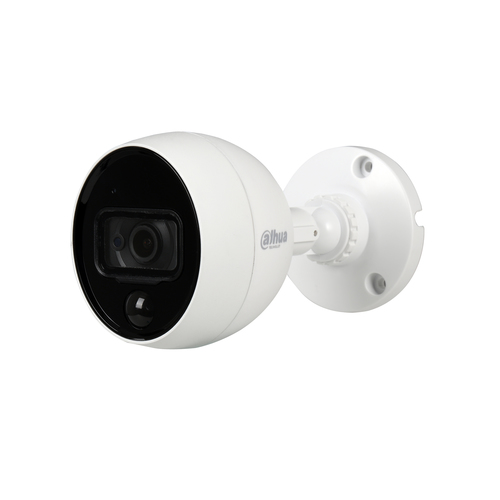

DH-HAC-ME2802BN 2.8MM
Model DH-HAC-ME2802BN 2.8MM
76 specifications
- ConnectivityWired
- TypeIP security camera
- Weight250 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 250 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- DH-HAC-ME2802BN 2.8MM
- Part number
- DH-HAC-ME2802BN 2.8MM
- Also known as
- Dahua Technology IOT DH-HAC-ME2802BN 2.8MM security camera Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling/wall
Specifications
76 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Languages support | Multi |
| Certification | CE, FCC, UL |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 110.8° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/100000 s |
| Adjustment shutter speed | Auto/Manual |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2 mm (1 / 2") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 3840 x 2160 pixels |
Lens system
| Specification | Value |
|---|---|
| Detect distance | 84 m |
| Observe distance | 34 m |
| Recognize distance | 17 m |
| Identify distance | 8 m |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 1.8 m |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Supported video modes | 720p, 1080p, 1440p, 2160p |
| Frame rate | 30 fps |
| Analog signal format system | NTSC |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction, Ultra 2D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Smart IR | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 65 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| BNC output ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (max) | 5.3 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 72.4 mm |
| Height | 93 mm |
| Length | 146.6 mm |
| Weight | 250 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 330 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Cables included | BNC |
| Manual | Yes |
