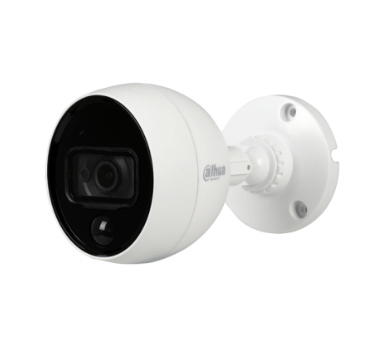

Dahua Technology IOT DH-HAC-ME1400B-PIR security camera Spherical CCTV security camera Indoor & outdoor
Dahua Technology

IOT DH-HAC-ME1400B-PIR security camera Spherical CCTV security camera Indoor & outdoor

2560 x 1440 pixels Ceiling/wall

Model DH-HAC-ME1400B-PIR

71 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight230 g
  • ColourWhite
  • Form factorSpherical
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
230 g
Colour
White
Form factor
Spherical
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-ME1400B-PIR
Part number
DH-HAC-ME1400B-PIR
Also known as
Dahua Technology IOT DH-HAC-ME1400B-PIR security camera Spherical CCTV security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

71 specifications in 16 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Languages supportMulti
CertificationCE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorSpherical
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium, Plastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal107.2°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speedPAL: 1/25-1/100000, NTSC: 1/30-1/100000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Number of lenses1
Detect distance56 m
Observe distance22 m
Recognize distance11 m
Fixed focusYes
Identify distance6 m
Maximum aperture number1.8
Closest focusing distance1.1 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance20 m
LED typeIR
Number of illumination LEDs1

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Supported graphics resolutions2560 x 1440
Supported video modes1080p
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

BNC output ports1

Power

Power source typeDC
Power consumption (max)4.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-10 - 50 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width146.6 mm
Depth72.4 mm
Height83 mm
Weight230 g

Packaging data

Package weight300 g

Packaging content

Number of cameras1
