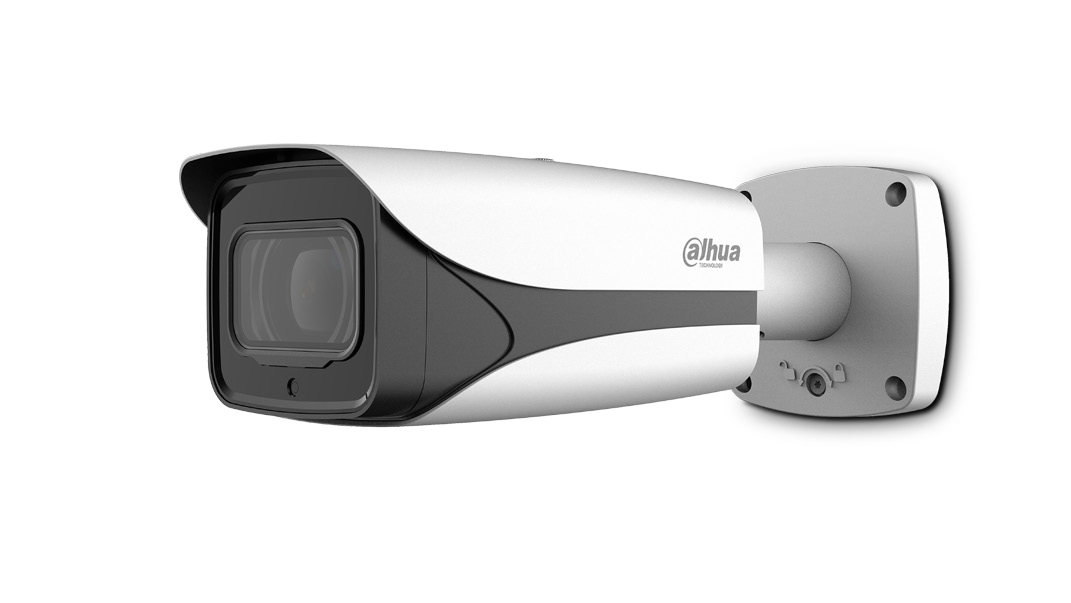

Dahua Technology Ultra DH-HAC-HFW3802E-Z-VP Bullet CCTV security camera Outdoor
Dahua Technology

Ultra DH-HAC-HFW3802E-Z-VP Bullet CCTV security camera Outdoor

3840 x 2160 pixels Ceiling/wall

Model DH-HAC-HFW3802E-Z-VPPart no. HAC-HFW3802E-Z-VP

75 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight1.08 kg
  • ColourBlack
  • Form factorBullet
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
1.08 kg
Colour
Black
Form factor
Bullet
Camera pan control
Yes
Brand
Dahua Technology
Model
DH-HAC-HFW3802E-Z-VP
Part number
HAC-HFW3802E-Z-VP
Also known as
Dahua Technology Ultra DH-HAC-HFW3802E-Z-VP Bullet CCTV security camera Outdoor 3840 x 2160 pixels Ceiling/wall

Specifications

75 specifications in 15 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC 15 B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeCeiling/wall
Product colourBlack
Housing materialAluminium
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal112°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/1-1/10000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2 mm (1 / 2")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom3x
Focal length range3.7 - 11 mm
FocusMotorized/Manual
Maximum aperture number1.5
Closest focusing distance0.2 m
Detect distance (tele)190 m
Detect distance (wide)83 m
Identify distance (tele)19 m
Identify distance (wide)8 m
Observe distance (tele)76 m
Observe distance (wide)33 m
Recognize distance (tele)38 m
Recognize distance (wide)17 m

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution3840 x 2160 pixels
Total megapixels8 MP
Supported graphics resolutions2560 x 1440, 3840 x 2160
Frame rate30 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes

Audio

Audio input channels1.0 channels

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Power

Power source typeAC, DC
AC input voltage24 V
Power consumption (max)18.4 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width95 mm
Depth95 mm
Length273.2 mm
Weight1.08 kg

Packaging data

Package weight1.33 kg

Packaging content

Number of cameras1
