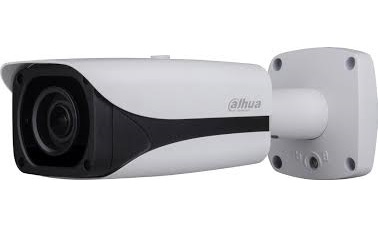

Dahua Technology Ultra DH-HAC-HFW3231E-Z Bullet CCTV security camera Indoor & outdoor
Dahua Technology

Ultra DH-HAC-HFW3231E-Z Bullet CCTV security camera Indoor & outdoor

1920 x 1080 pixels Wall

Model DH-HAC-HFW3231E-ZPart no. HAC-HFW3231E-Z

70 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight1.16 kg
  • ColourBlack, White
  • Form factorBullet
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
1.16 kg
Colour
Black, White
Form factor
Bullet
Minimum illumination
0 lx
Brand
Dahua Technology
Model
DH-HAC-HFW3231E-Z
Part number
HAC-HFW3231E-Z
Also known as
Dahua Technology Ultra DH-HAC-HFW3231E-Z Bullet CCTV security camera Indoor & outdoor 1920 x 1080 pixels Wall

Specifications

70 specifications in 15 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Day/night modeYes
Alarm input/outputYes
CertificationCE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Design

Form factorBullet
Mounting typeWall
Product colourBlack, White
Housing materialAluminium
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal95°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Manual
Camera shutter typeElectronic

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Effective sensor resolution2.1 pixels
Progressive scanYes
Number of effective pixels (H x V)1945 x 1097 pixels

Lens system

Zoom capabilityYes
Optical zoom4.4x
Focal length range2.7 - 12 mm
Auto focusYes
FocusMotorized/Manual
Maximum aperture number1.4
Closest focusing distance0.3 m
Detect distance (tele)133 m
Detect distance (wide)48 m
Identify distance (tele)13 m
Identify distance (wide)5 m
Observe distance (tele)53 m
Observe distance (wide)19 m
Recognize distance (tele)27 m
Recognize distance (wide)10 m

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2.1 MP
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)65 dB

Ports & interfaces

BNC output ports2
Microphone inYes

Power

Power source typeAC, DC
AC input voltage24 V
Power consumption (max)16.6 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 90%

Weight & dimensions

Depth273.2 mm
Diameter9.5 cm
Weight1.16 kg

Packaging data

Package weight1.52 kg

Packaging content

Number of cameras1

Technical details

Lens mount interfaceBoard mount
